Product Parameter
Brand: cnsdi
Product or component type:MCCB Busbar Pan Assembly
Device application:Distribution board
Part code: CDi640-3PH 630A/06W
Amperage Rating:630 A
[Ui] rated insulation voltage:690 V
[Uimp] rated impulse withstand voltage:6 kV
Number of ways:1 way (incomer) - 4P MCCB
Number of poles:24 x 35 mm
Number of poles:24
Standards:IEC61439-2

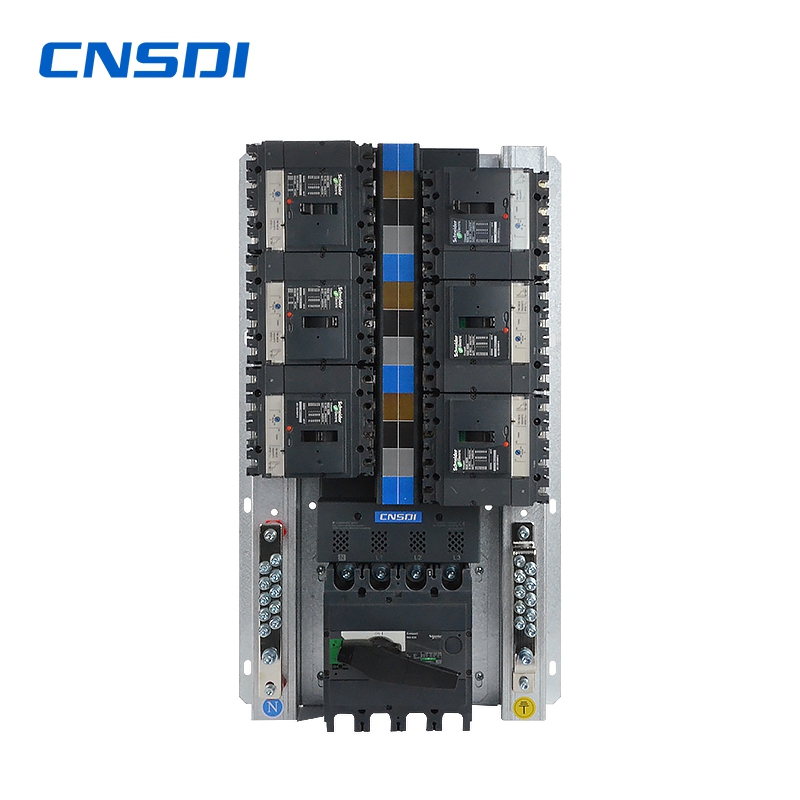

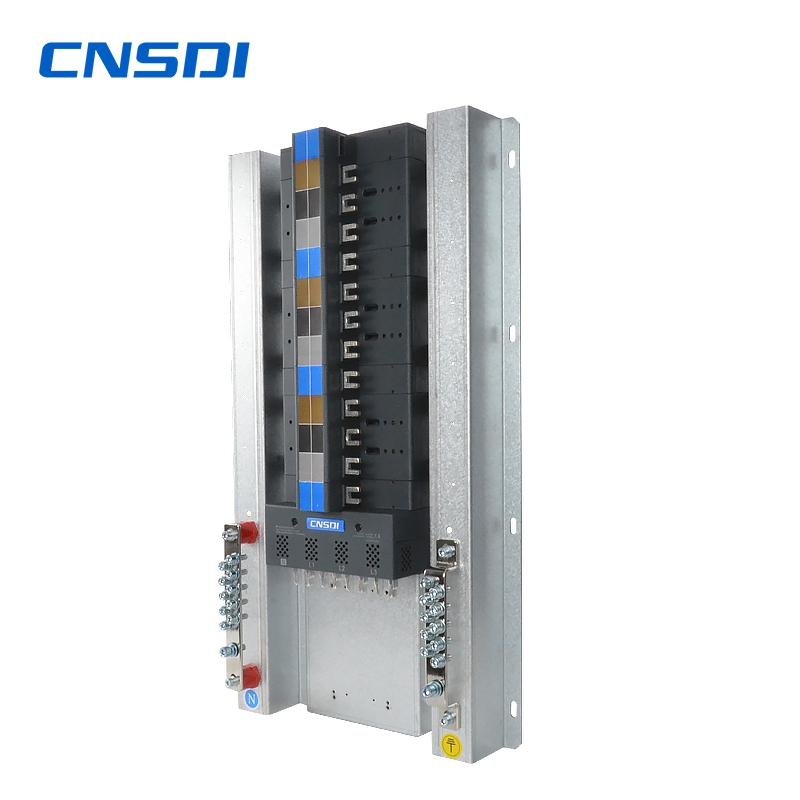

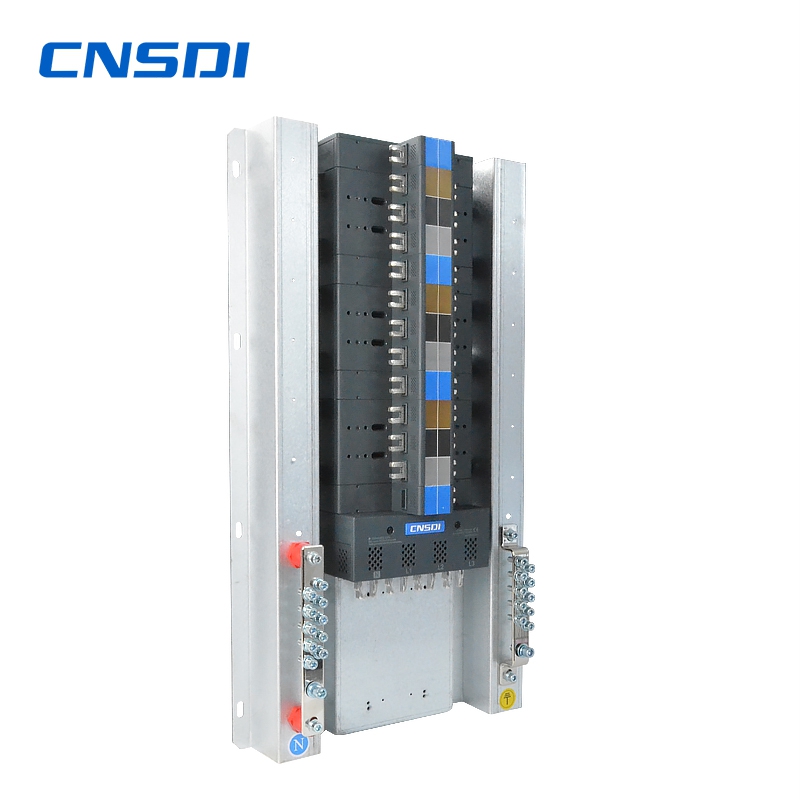

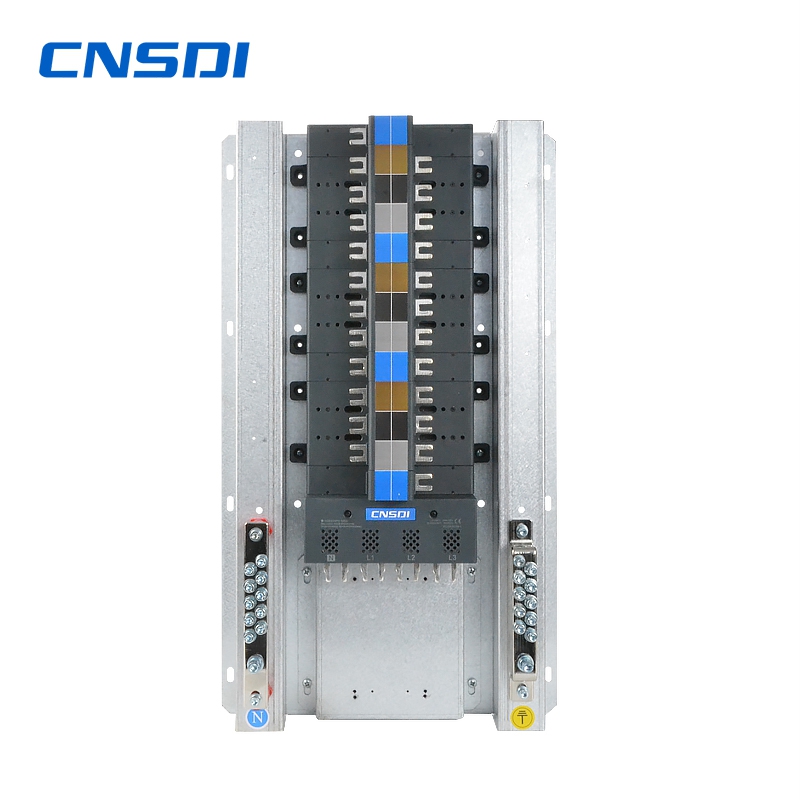

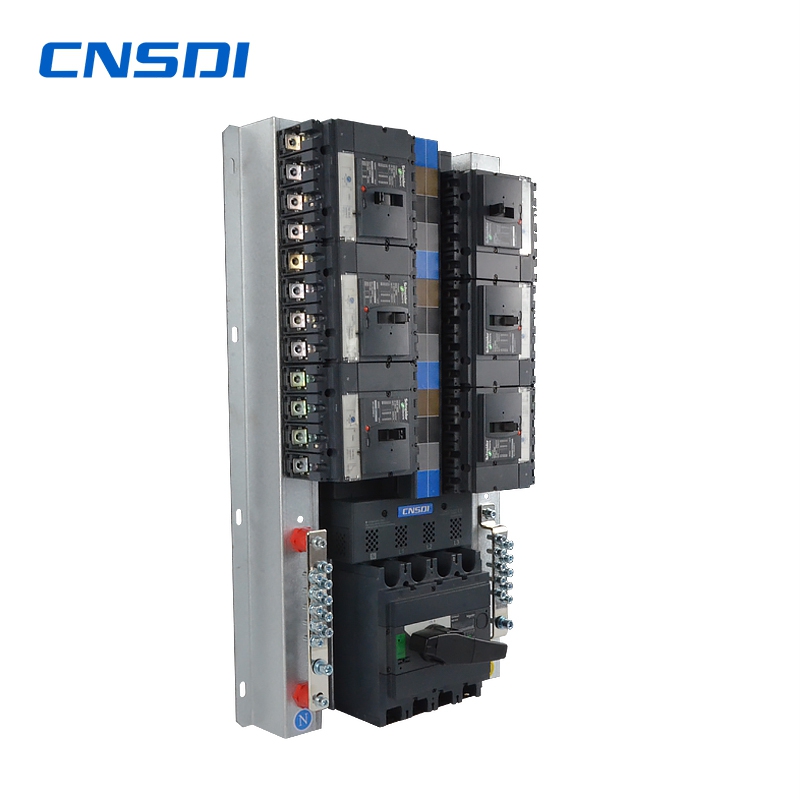

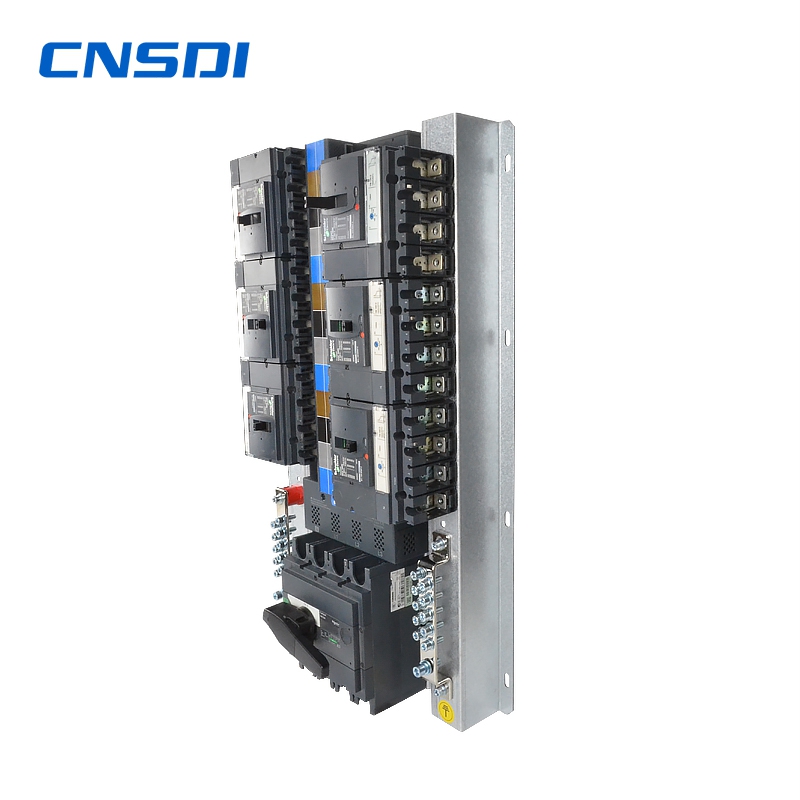

CNSDI’s CDi640-4PH Busbar Pan Assembly Chassis is a high-performance electrical distribution solution. This isolation Busbar chassis provides a quick and easy method to connect MCCBs.The Ie rated operational current 630A This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 4PH and ootgoer 4P devices The number of outgoing ways in Chassis is 24 with pitch of 35mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 690VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC61439-2 standard.
