Product Parameter
Brand: cnsdi
Product or component type: Pan Assembly Busbar
Device application:Distribution board
Part code: CDi420-4PN/250A MCCB-4P04W
Material: Tinned plated copper purity 99.7%
Amperage Rating:250 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Incoming: MCCB Pitch-35mm up to 250A
Outgoing: MCCB Pitch-35mm
Standards:IEC/EN 61439-3

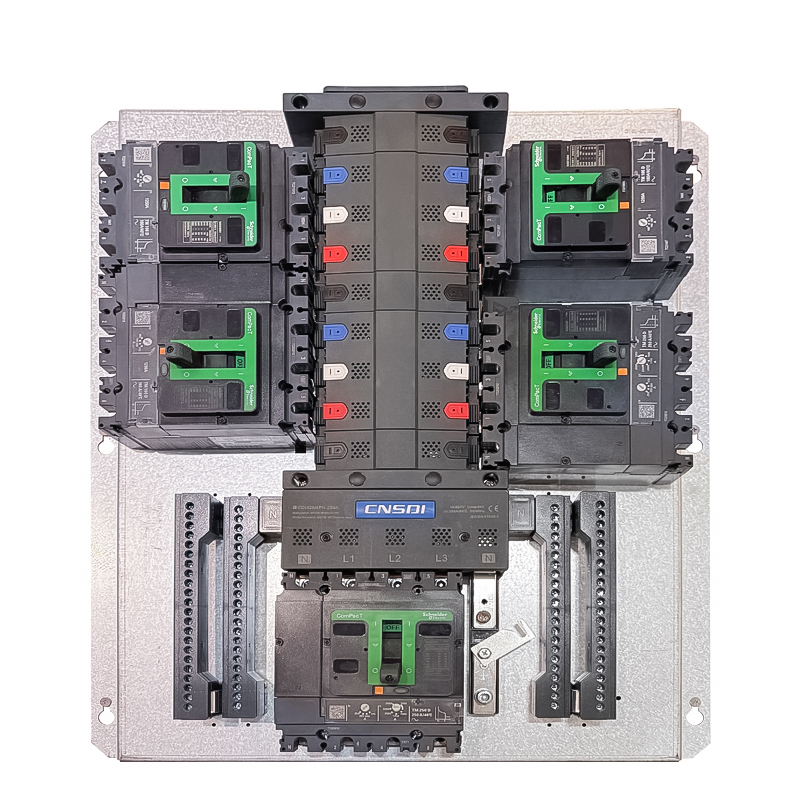

CNSDI's CDi420-4PN Busbar Pan Assembly is a high-performance electrical distribution solution. This isolation Busbar Pan Assembly provides a quick and easy method to connect MCCBs.This range of 4-phase pan assemblies is designed to suit applications where switchingandprotection of the neutral is deemed unnecessary, Each pan assembly is fuly insulated incorporating Mounting plate, incoming and outgoing busbar assembly.The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This Pan Assembly can have both top or bottom feeding This Pan Assembly is compatibility with incomer 4PN and ootgoer 4P devices The number of outgoing ways in Busbar Pan Assembly is 16 with pitch of 35mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC/EN 61439-3 standard.
