Product Parameter
Brand: cnsdi
Product or component type:Pan Assembly Busbar
Device application:Distribution box
Part code: CDi-CK25-3PN 125A
Amperage Rating:125 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Incoming: MCCB Pitch-25mm up to 125A
Outgoing: Plug in MCB-1P/3P
Standards:IEC/EN 61439-3

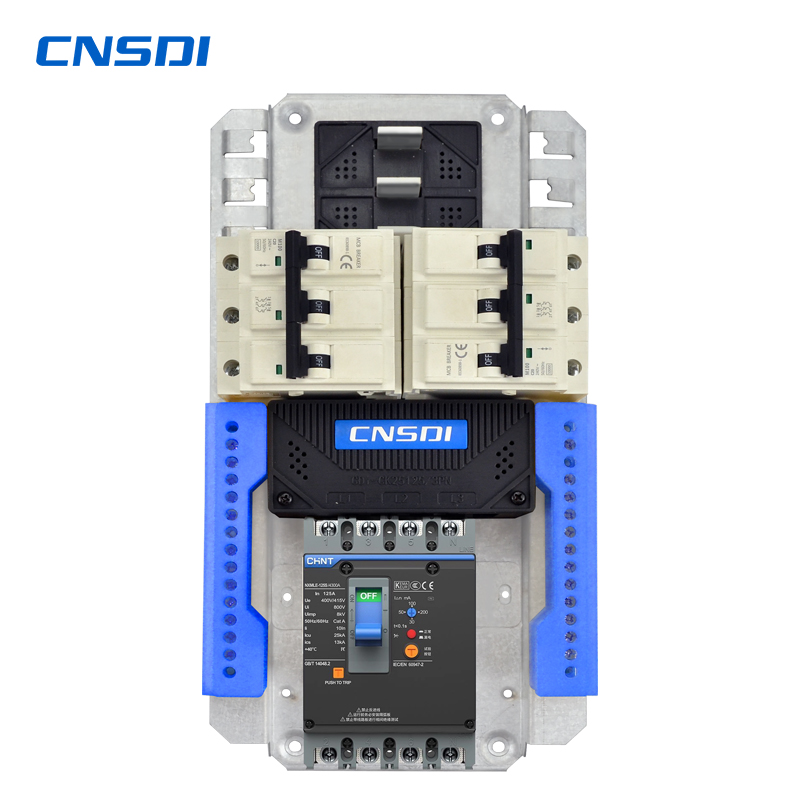

CNSDI's CDi-CK25-3PN 125A Pan Assembly Busbar is a high-performance electrical distribution solution. This isolation Busbar chassis provides a quick and easy method to connect Plug in MCBs.The Ie rated operational current 125A and Ue rated operational voltage of 415V at 50 Hz This Busbar can have both top or bottom feeding This Busbar is compatibility with incomer 3PN and ootgoer Plug in MCB-1P/3P devices. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC/EN 61439-3 standard.
