Product Parameter
Brand: cnsdi
Product or component type:Pan Assembly Busbar
Device application:Distribution box
Part code: CDi420-4PN 250A
Amperage Rating:250 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Incoming: MCCB-35mm up to 250A
Outgoing: MCB-idpnL 36mm
Standards:IEC/EN 61439-3

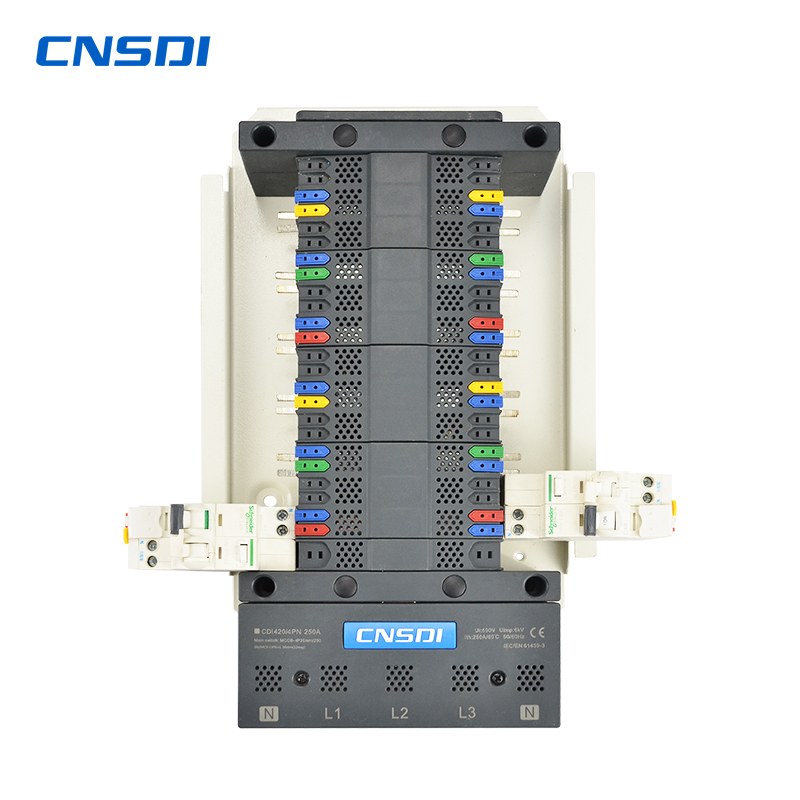

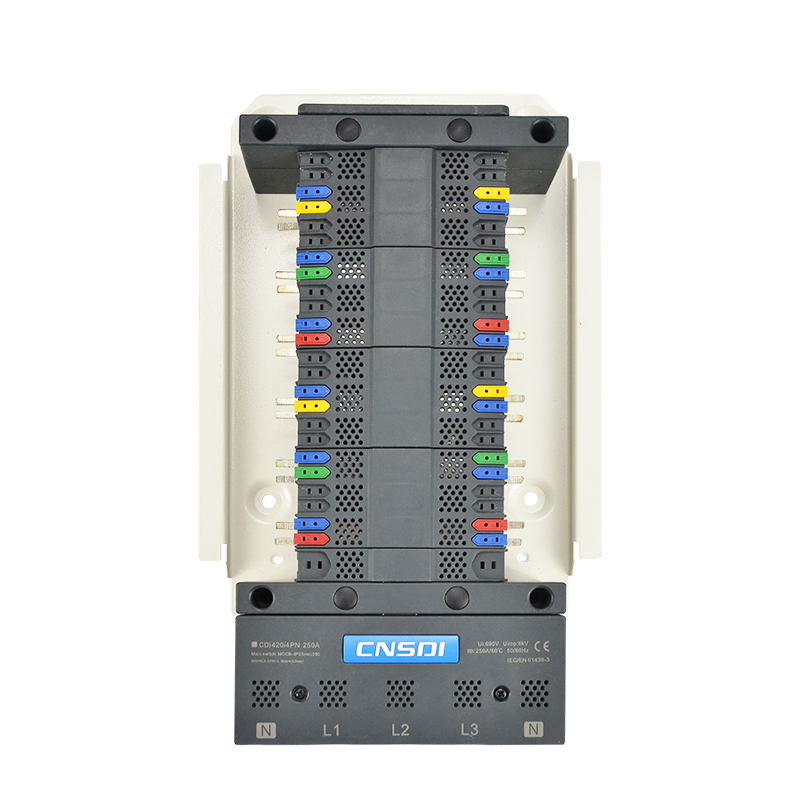

CNSDI's CDi420-4PN Pan Assembly Busbar is a high-performance electrical distribution solution. This isolation Busbar chassis provides a quick and easy method to connect MCBs.The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This Busbar can have both top or bottom feeding This Busbar is compatibility with incomer 4PN and ootgoer MCB-idpnL devices The number of outgoing ways in Busbar is MCB-36mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC/EN 61439-3 standard.
