Product Parameter
Brand: cnsdi
Product or component type: Pan Assembly
Device application:Distribution board
Part code: CDi420-3PN 250A/10W
Material: Tinned plated copper purity 99.7%
Amperage Rating:250 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Incoming: MCCB-35mm up to 250A
Outgoing: MCB-18mm
Standards:IEC/EN 61439-3

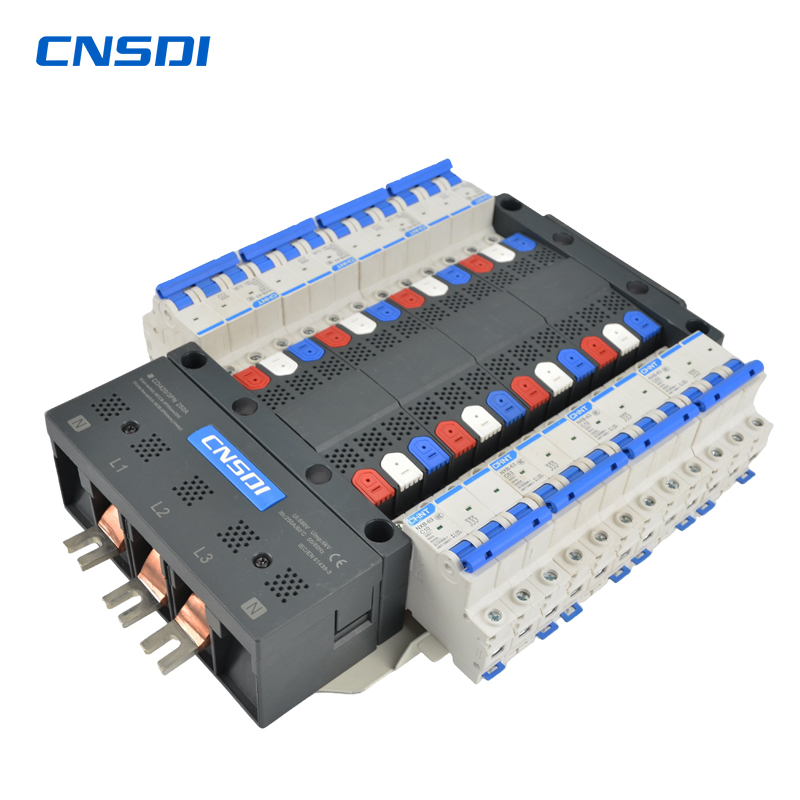

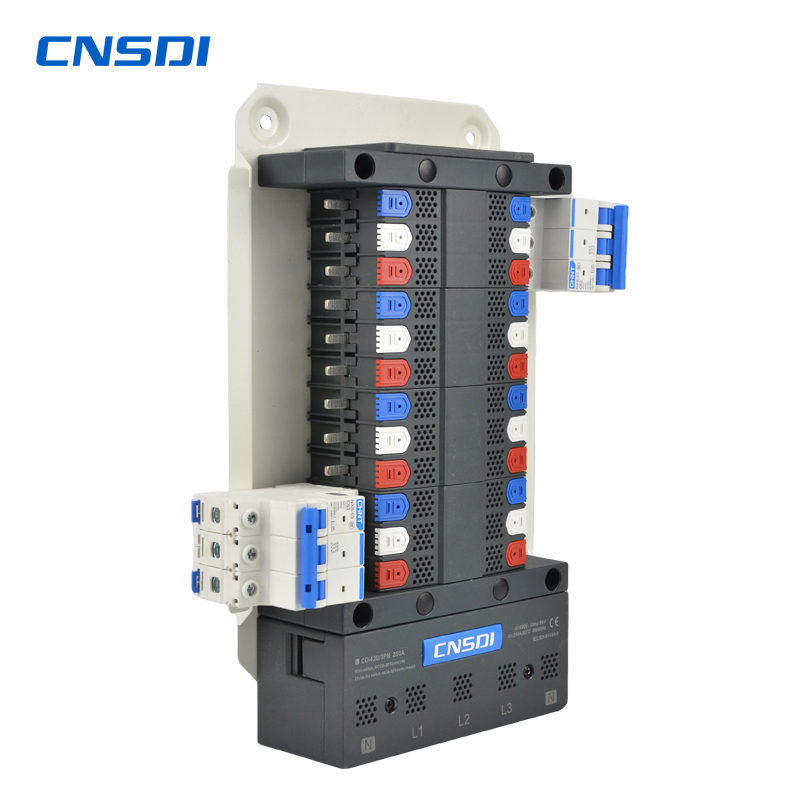

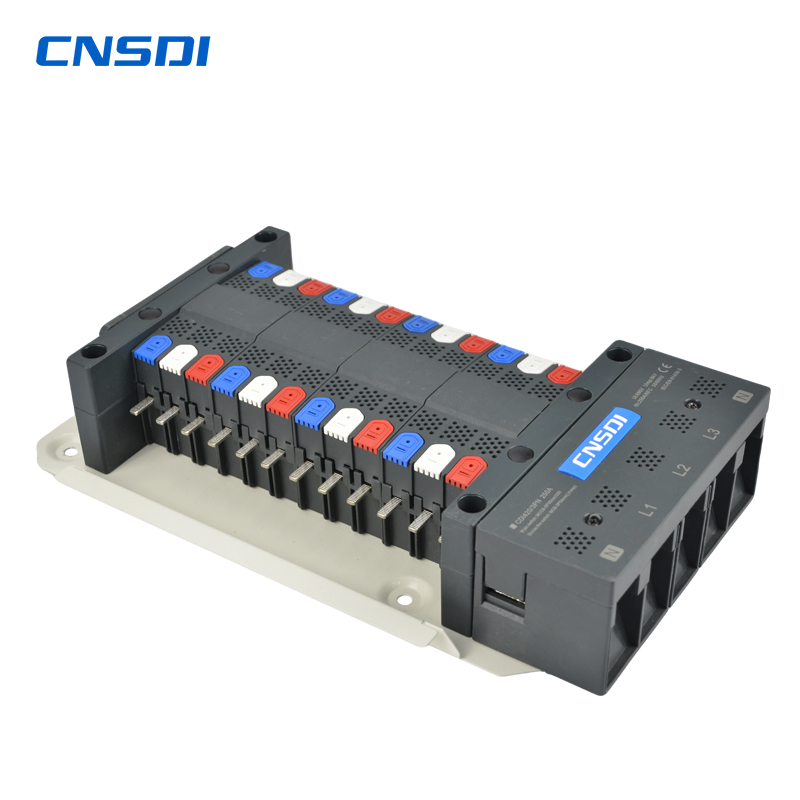

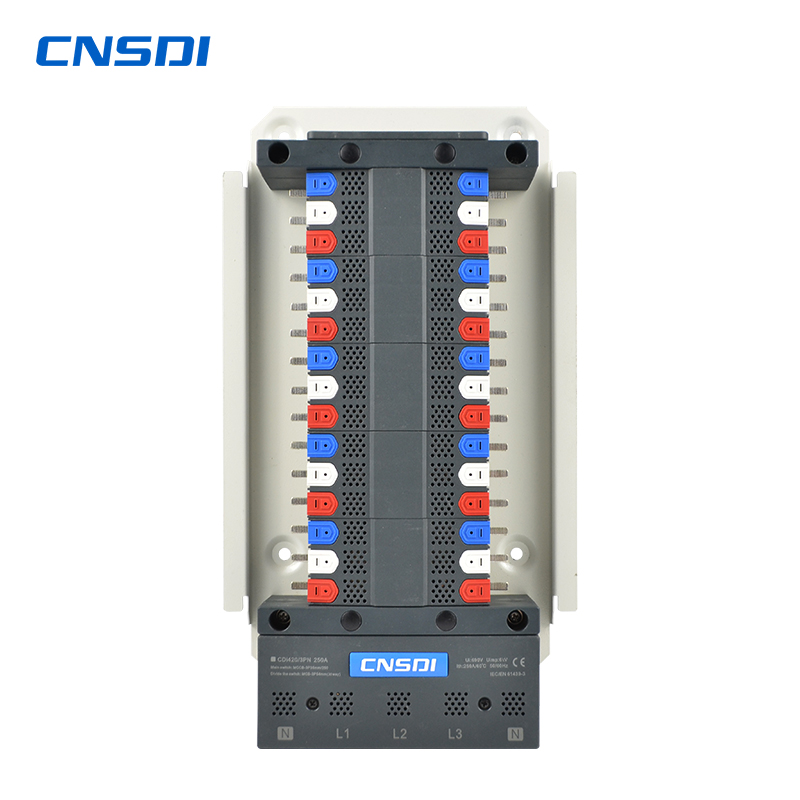

CNSDI's CDi420-3PN Busbar Pan Assembly is a high-performance electrical distribution solution. This isolation Busbar Pan Assembly provides a quick and easy method to connect MCBs.The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This Pan Assembly can have both top or bottom feeding This Pan Assembly is compatibility with incomer 3PN and ootgoer 1Ph or 3P devices The number of outgoing ways in Busbar Pan Assembly is 30 with pitch of 18mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC/EN 61439-3 standard.
