Product Parameter
Brand: cnsdi
Product or component type:busbar chassis
Device application:Distribution board
Part code: CDi-PG22-3PH 225A/14W
Amperage Rating:225 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Number of ways:1 way (incomer) - 3P
Number of poles:42 x 18 mm
Number of poles:42
Standards:IEC/EN 60947-7-1

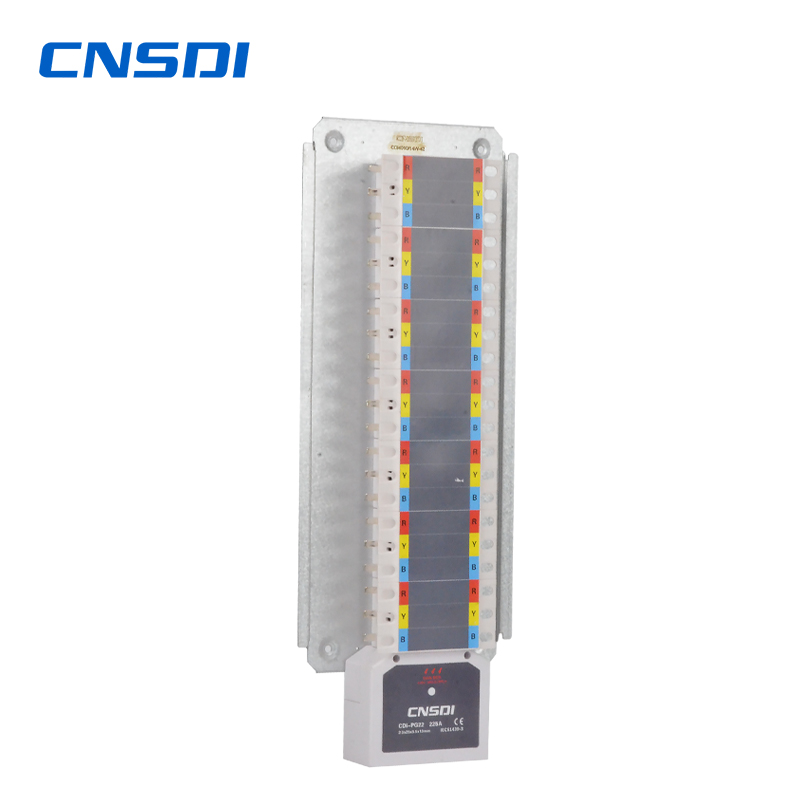

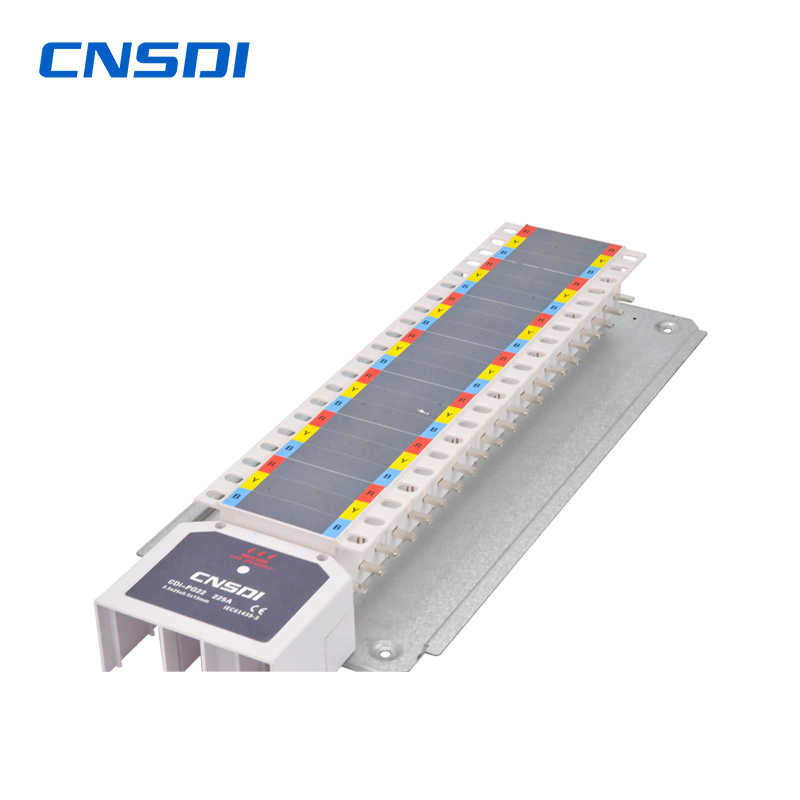

CNSDI’s CDi-PG22-3PH Busbar Chassis is a high-performance electrical distribution solution. This isolation Busbar chassis provides a quick and easy method to connect MCBs.The Ie rated operational current 225A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 42 with pitch of 18mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC/EN 60947-7-1 standard.
