Product Parameter
Brand: cnsdi
Product or component type:pan assembly
Device application:Distribution board
Part code: CDi0723-3PH 160A/16W
Amperage Rating:160 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Number of ways:1 way (incomer) - 3P
Number of poles:48 x 18 mm
Number of poles:48
Standards:IEC/EN 60947-7-1

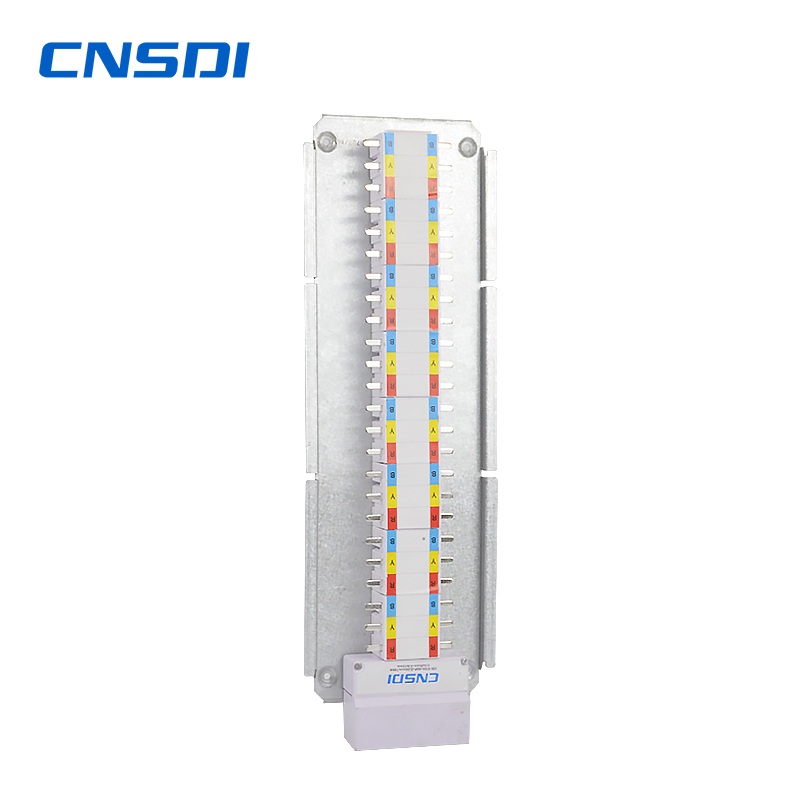

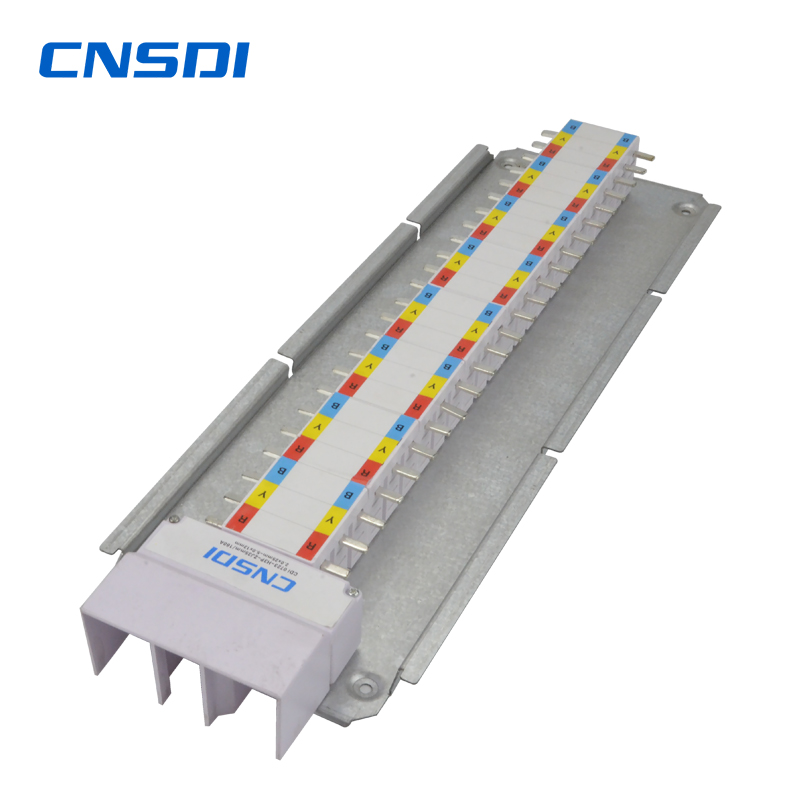

CNSDI’s CDi0723-3PH Busbar Pan Assembly is a high-performance electrical distribution solution. This isolation pan assembly provides a quick and easy method to connect MCBs.The Ie rated operational current 160A and Ue rated operational voltage of 415V at 50 Hz This pan assembly can have both top or bottom feeding This pan assembly is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Pan assembly is 48 with pitch of 18mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This pan assembly product complies with IEC/EN 60947-7-1 standard.
