Insulated FORK /U Comb Mcb Busbar

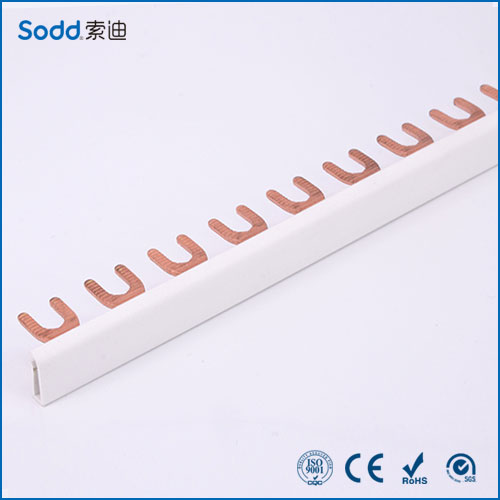

U/ Fork Type Busbar Comb for MCB 1P
U/ Fork Type Busbar Comb for MCB 1P U/ Fork Type Busbar Comb for MCB 1P U/ Fork Type Busbar Comb for MCB 1P U/ Fork Type Busbar Comb for MCB 1P U/ Fork Type Busbar Comb for MCB 1P

U/ Fork Type Busbar Comb for MCB 1P

Categories
Insulated FORK /U Comb Mcb Busbar
Brand
Sodd
Model
FORK Busbar 1P
FOB Port
ZhongShang,GuangZhou
Terms of Payment
Western Union,T/T Paypal
Update
05/19/2020
Product Description

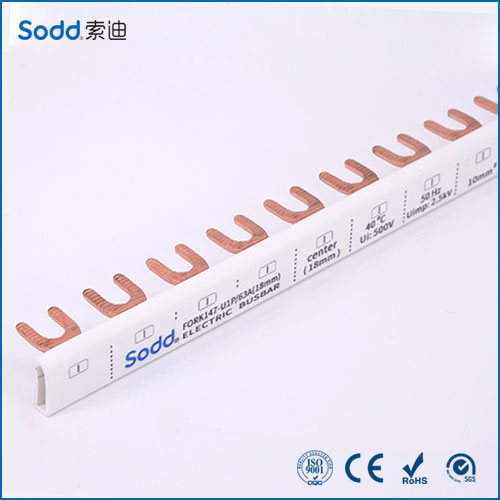

Fork Type Busbar Comb for MCB

The present Busbar changed the outdated connection ways of miniature circuit breaker (MCB) to a new connection way with the characteristics of wider contact area, low power consumption and low temperature-rise.

Product Description:

Our company produces almost all kinds of busbars for MCB,which have good versatility and practibility.It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box and so on.

Specifications:

1.CE & ROHS,SGS,ISO9001 Certificated
2.Model:Fork Busbar, U type Busbar
3.Pin/Fork/U type
4.Universal for MCB
5.Material: Pure copper, fire-resistance PVC
6.Rated Current:40A,50A,63A,80A,100A
7.Rated Voltage: up to 415V
8.Standard length 1M
9. Support OEM & ODM
10. Material of bus bar manufacturing company: copper and pvc
11.Type of comb busbar for distribution board panel: L-101, L-102, L-103, L-104,L-201,L202,L-203,L204
12.Phase/pole:1p,2p,3p,4p
13.No of Pins of bus bar manufacturing company: 54, 56
14.Rated Current (A): 63-100, 63,50,40
15. Thickness&Height (mm): 1.5&9, 1.5&7, 1.4&7, 1.2&7
16.Perfect printing on plastic slot, and convenient to cut

Features:

Good conductivity
Low contact resistance
Safe and reliable
Comb bus bar manufacturing company
Good versatility and tractability
Advantages and security and convenience to install and widely used in construction electrical devices.

Packaging & Delivery:

Packaging Details:5pcs each heat shrink film packing, 50pcs per carton, standard export packing
Delivery Detail:Shipped in 20 days after payment
As one of the trustworthy electrical bus bars manufacturers and suppliers in China, Sodd Electric is dedicated to be a professional cleaner energy and efficient energy developer and supplier. With professional factory supplying you with OEM, SCHNEIDER, ABB and LS electrical bus bars, you can rest assured to wholesale quality products and check the pricelist with us.

Product Details:

Fork Type Busbar Comb for MCB

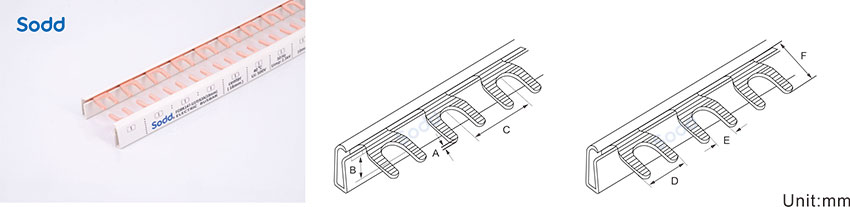

Specification model A B C D E F Cross-Sectional Area Referance Current
FORK 1P 1.4 7 18 11 6 12 10mm² 63A
FORK 1P 1.5 9 18 11 6 12 13.5mm² 80A
FORK 1P 1.5 10.5 18 11 6 12 16mm² 100A

MCB busbar copper clad aluminum busbar

Material is of fire-resistant PVC and redl copper
2. Current rating is up to 125A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.
The Present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with the characteristics of wider contact area ,
low power consumption and temperature-rise.
Our company products almost all kinds of busbars for MCB,
which have good versatility and practility.
It has advantages of security and convenience to install and widely used in construction
electrical devices,such as low-voltage power box ,distribution box,illuminatde box and so on.

Combinated busbar:

The patented combinated busbar get rid of the disadvantage of the old style busbar and has
 the following virtue.
1.It can be combinated to install directly by ednd user according to any type and quantity of
MCBs,thus can avoid the "cut-the busbar" inconvenience when the old style busbar used.

2.It can form the mixed busbar to match different type of MCBs with its different unit directly
by end user,whereas it can only specially-made
by the manufactory with different mould
thus can solve the connection difficulties when the old busbar used.

3.It has the feature of good clima stability and can be used in the humid or frozen circumstance,
due to its sealed structure,while the old stype busbar can not be used because of its unstable
creepy distance and with stand voltage in such circumstance.

4.The temperature-resistant of its insulator can reach 120°C ,and the withstand voltage of it can reach 5000V,which is much better than the old one.

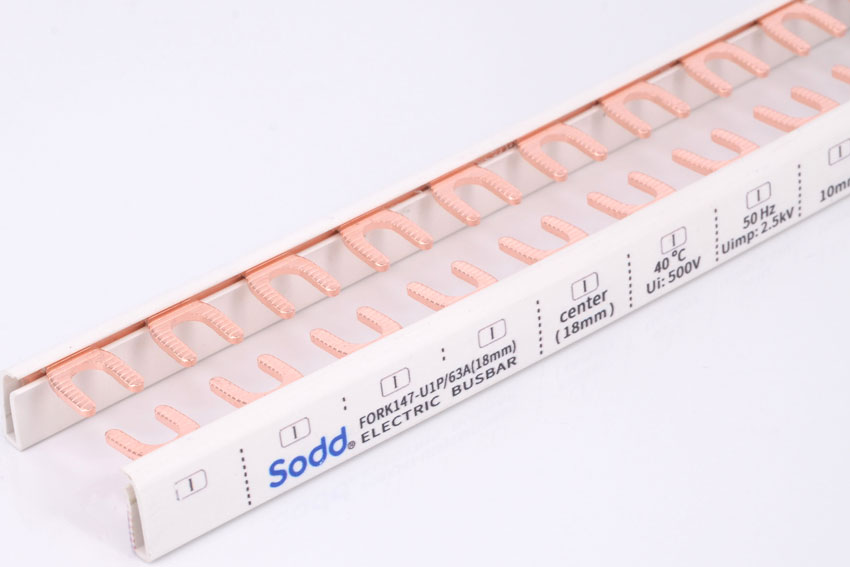

Fork Insulated Busbar 18 Module Wide 1P 63A

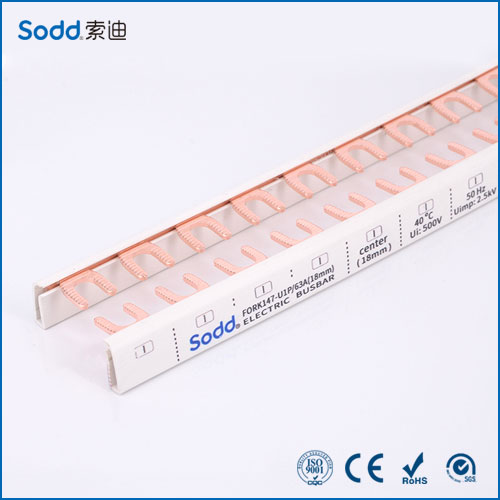

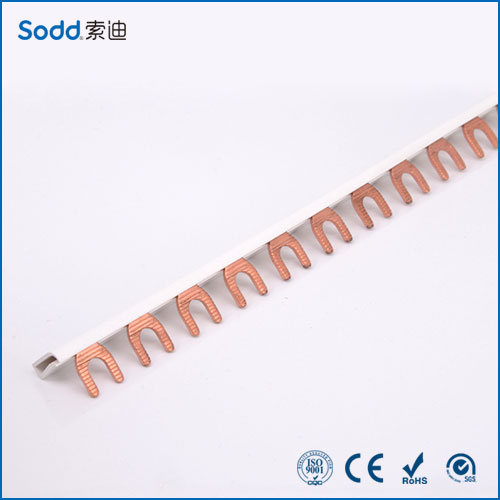

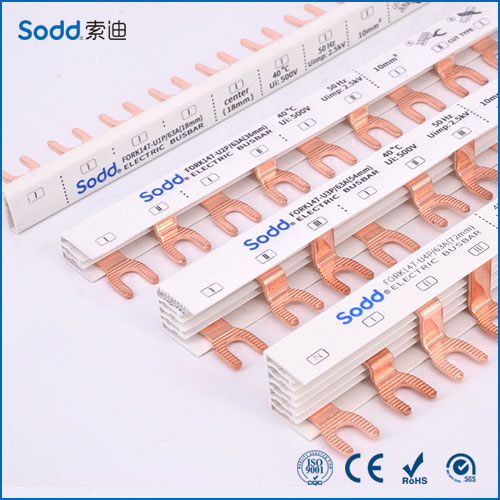

U/Fork Insulated Comb Busbar

Mbc Busbars size

Mcb busbars plant equipment

Mcb breaker busbar production assembly
