Product Parameter
Brand: cnsdi
Product or component type:Comb busbar
Mounting mode:Horizontal
Part code: CDi-pin1.5x9-2P 54W 80A/36mm
Amperage Rating:80A
Material: t3Copper and Pvc
Accessory / separate part category:Connection accessory
Lines description:2L
Length in 18 mm modules:54
Standards:IEC 60898-1,IEC 60947-7-1
Color:  White

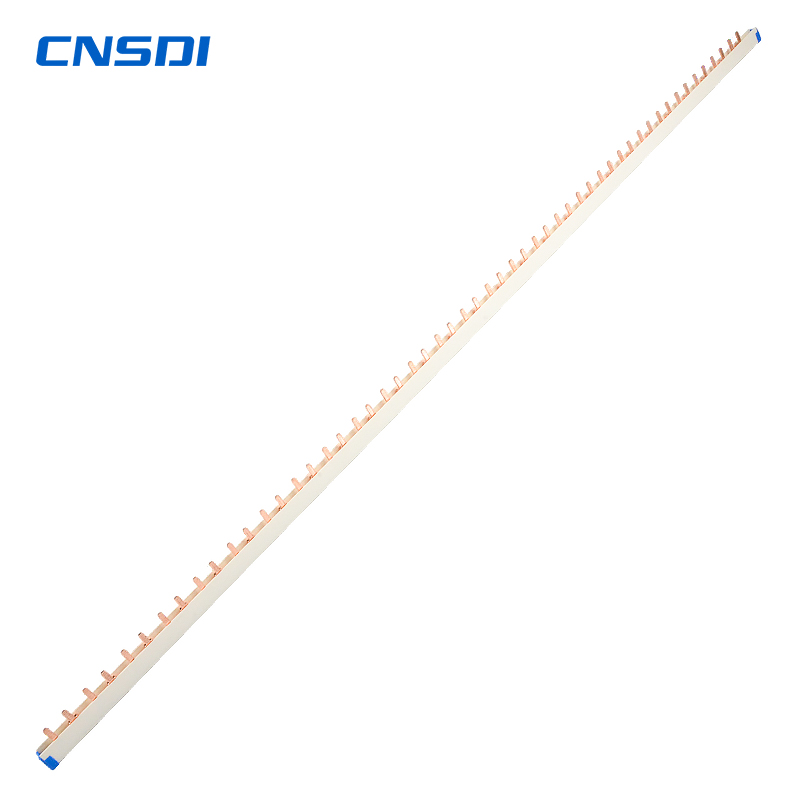

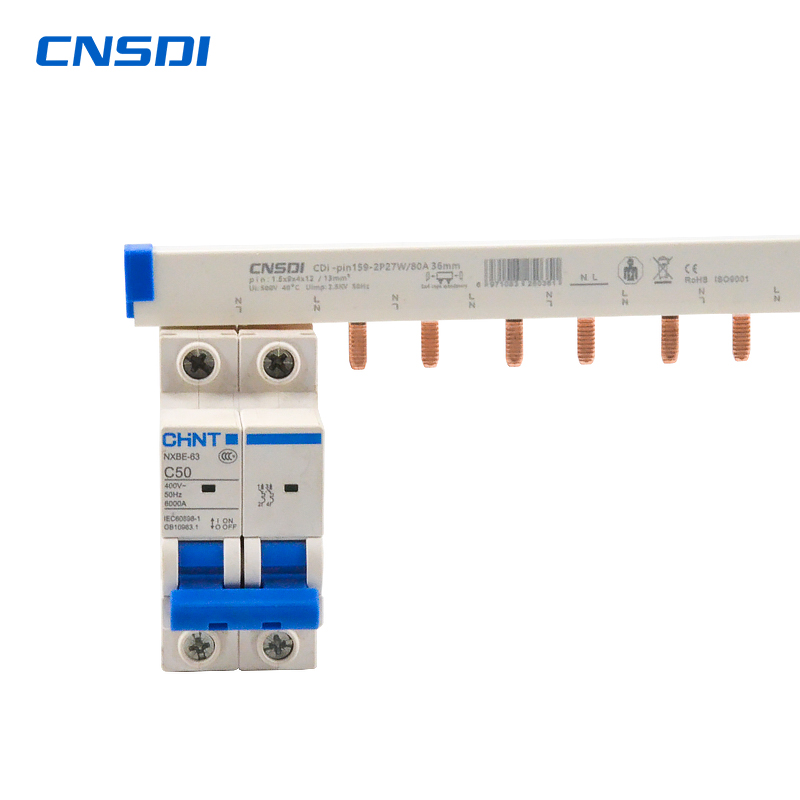

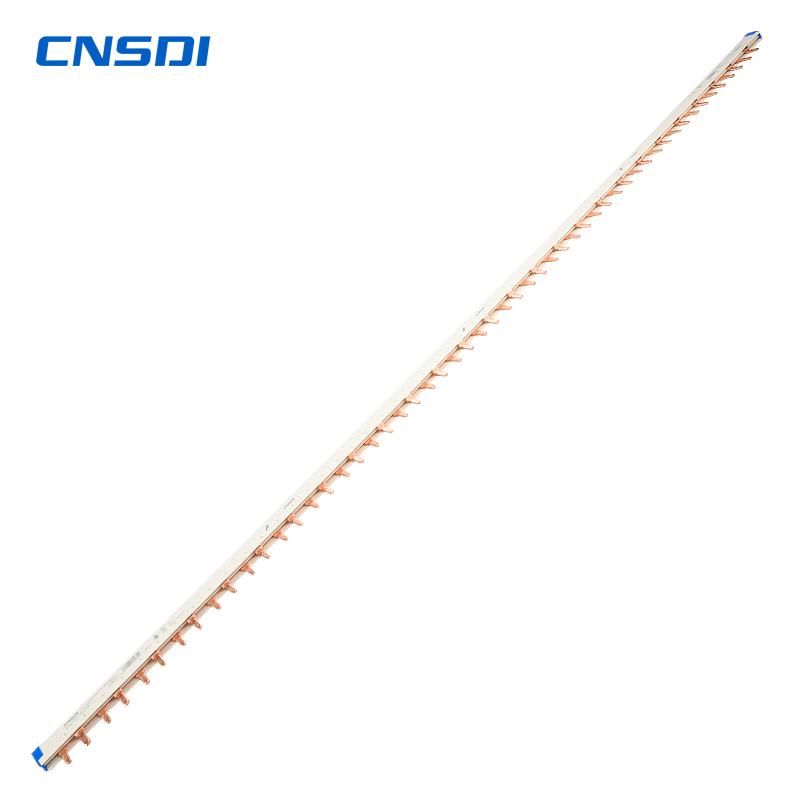

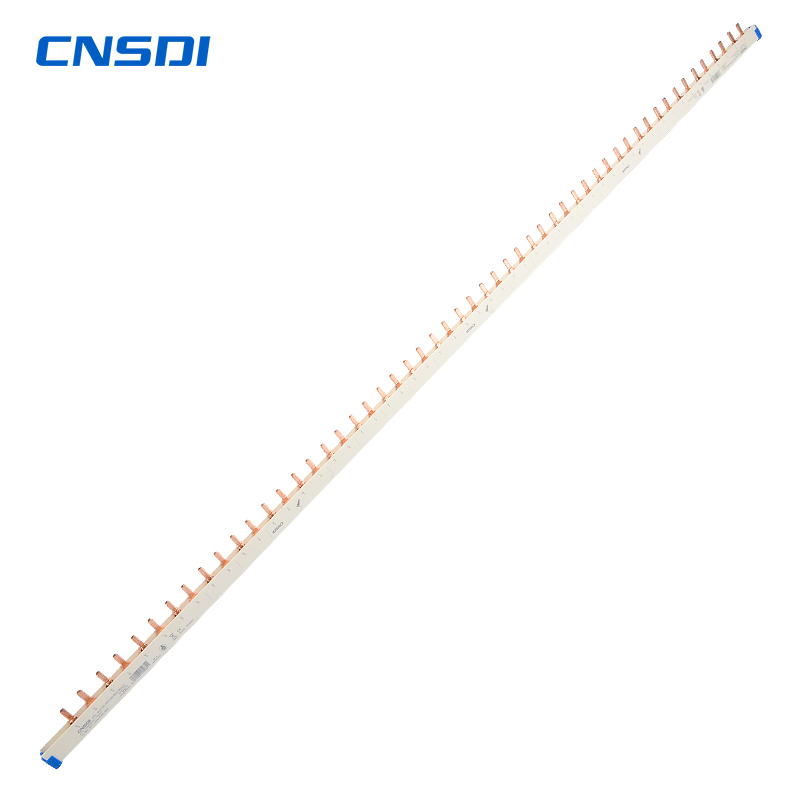

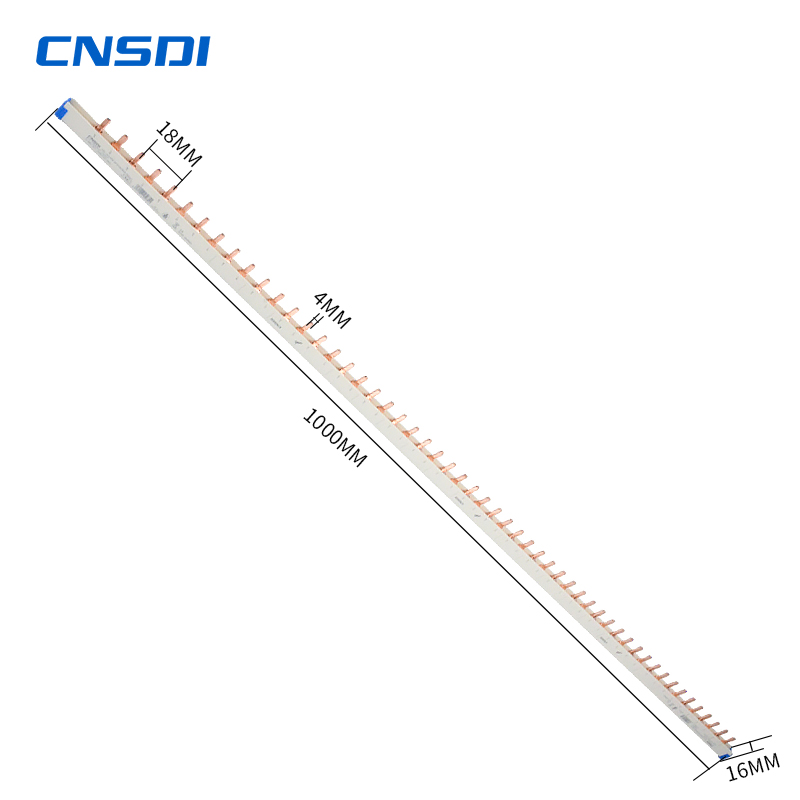

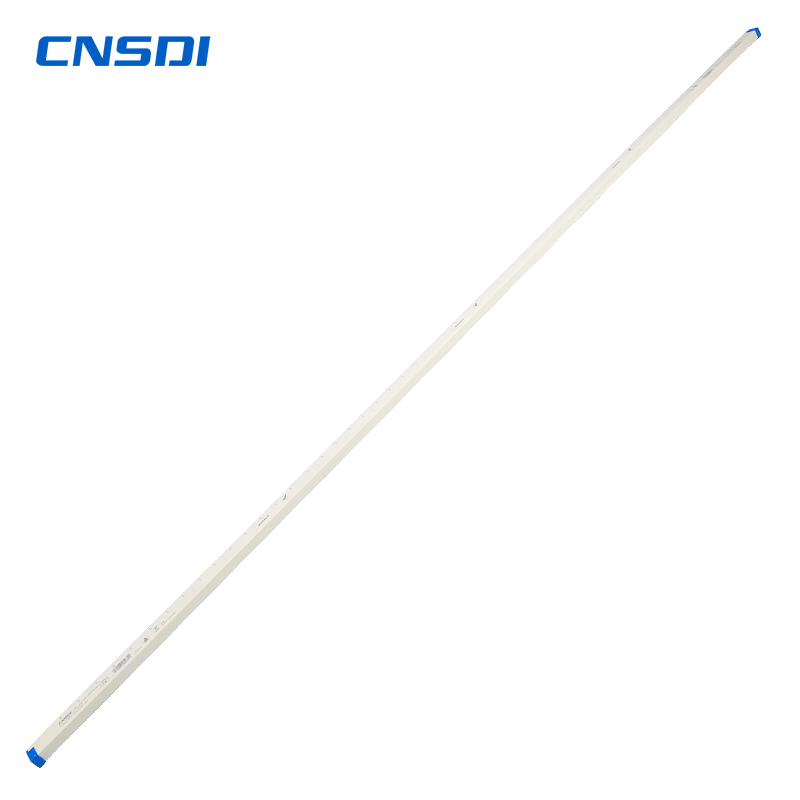

This CDi-pin159 product is a cuttable horizontal comb busbar 54 modules for UL 489 listed miniature circuit breakers up to a 80 A current rating. It is dedicated to 2L installations. The type is L (Line). It is a set of 1 device. It is suitable for 27 devices (2P). The length is 1000mm.The total number of modules of 18mm is 54. The pin cross section is 13.5mm2. The type of electric connection is PIN. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 500VAC.The color of the device is white. It complies with IEC 60947-7-1 and IEC 60898-1 standards.
