Product Parameter
Brand: cnsdi
Product or component type:Comb busbar
Mounting mode:Horizontal
Part code: CDi-fork1.4x7-4P 3W 63A/36mm
Amperage Rating:63 A
Material: t3Copper and Pvc
Accessory / separate part category:Connection accessory
Lines description:4L
Length in 18 mm modules:12
Standards:IEC 60898-1,IEC 60947-7-1
Color:  White

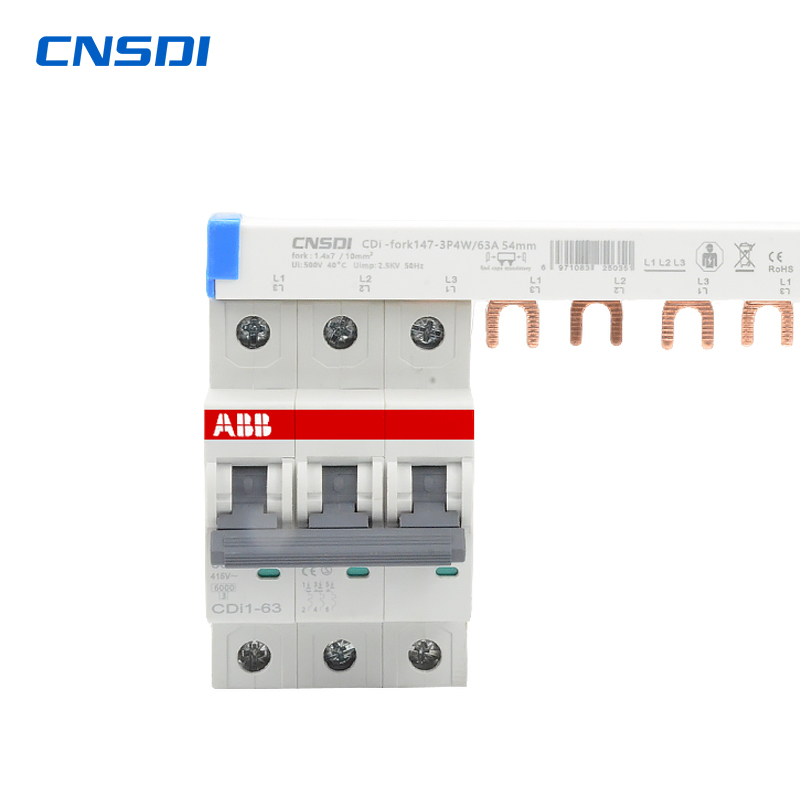

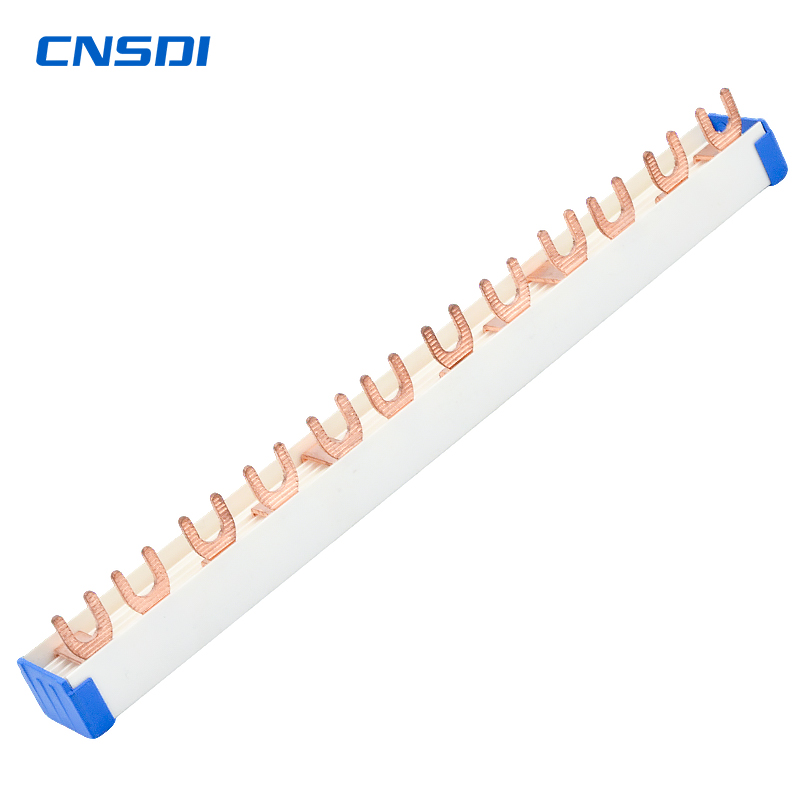

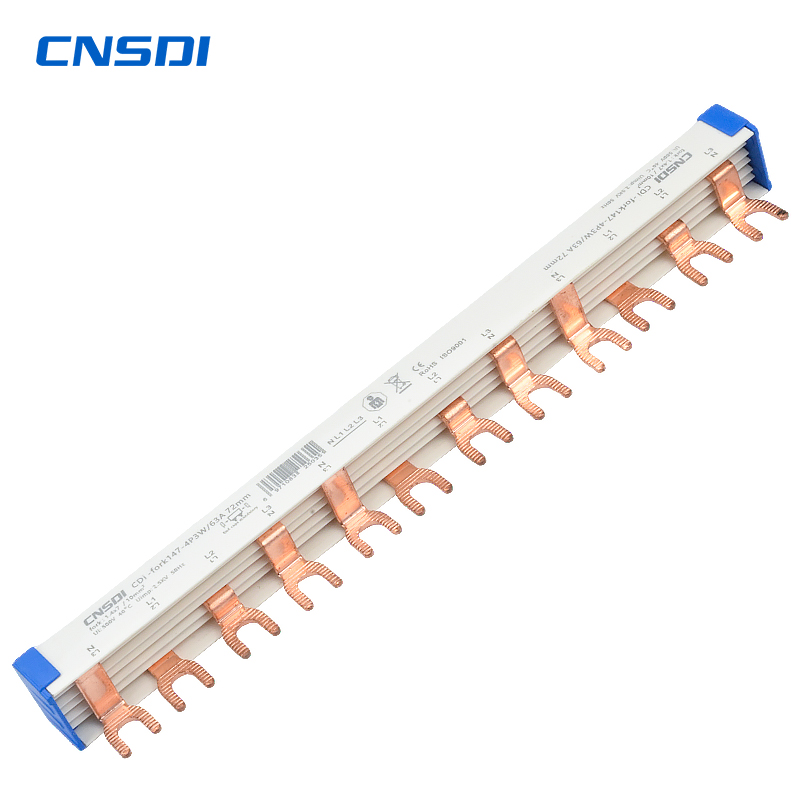

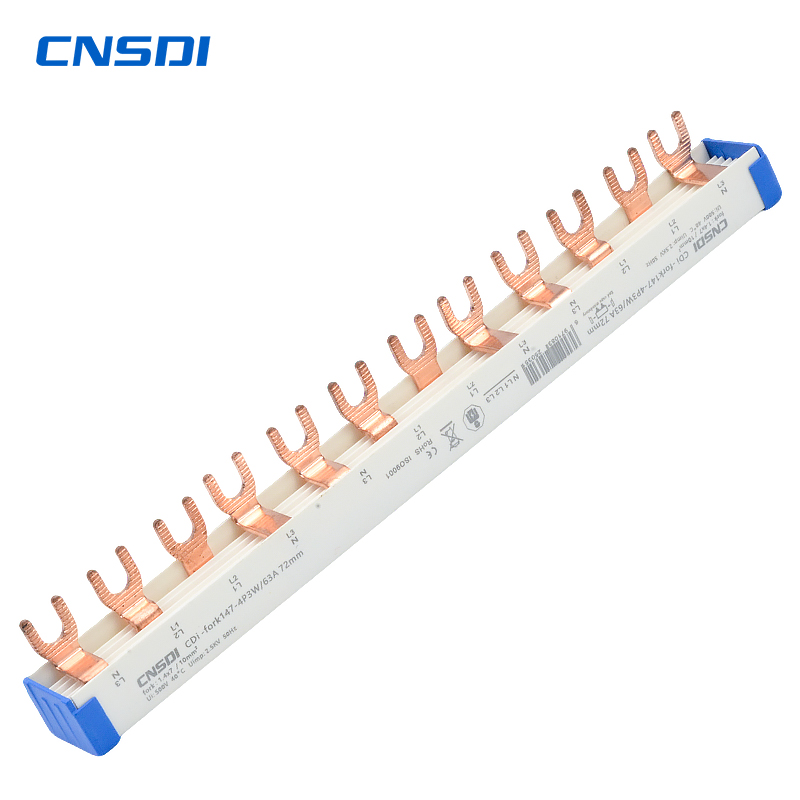

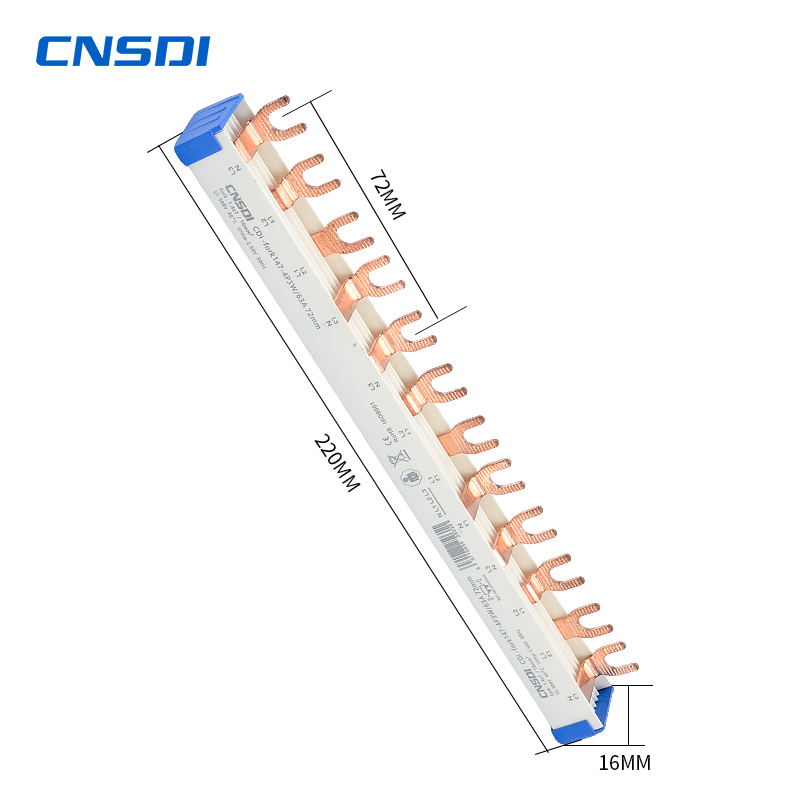

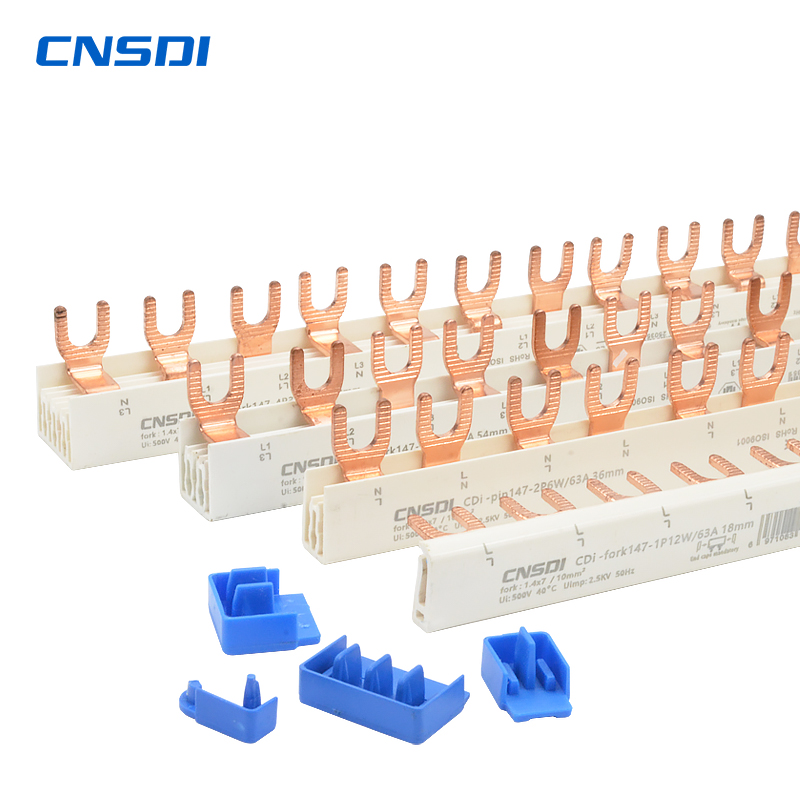

This CDi-fork147 product is a cuttable horizontal comb busbar 12 modules for UL 489 listed miniature circuit breakers up to a 63 A current rating. It is dedicated to 4L installations. The type is 4L (Line). It is a set of 1 device. It is suitable for 3 devices (4P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 10mm2. The type of electric connection is fork-U. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 500VAC.The color of the device is white. It complies with IEC 60947-7-1 and IEC 60898-1 standards.

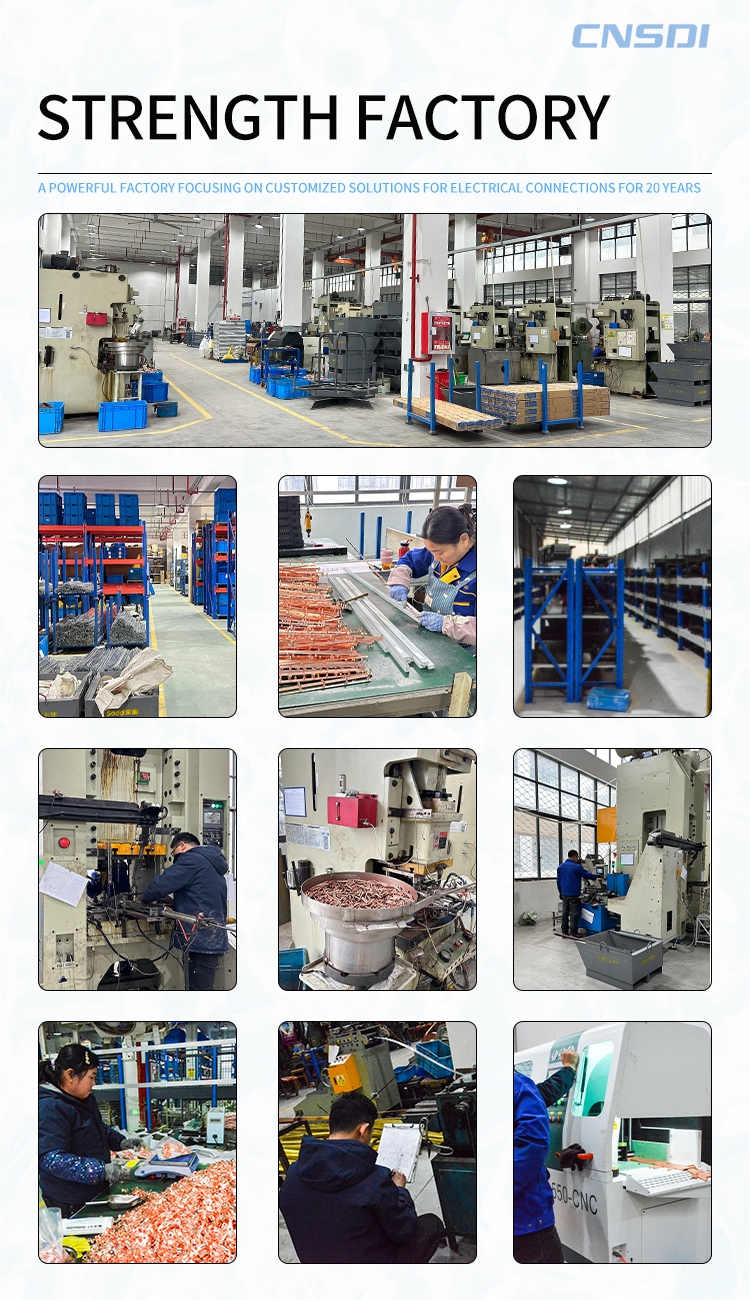

Zhejiang suodi (cnsdi) specializes in producing electrical accessories Chinese factory,a complete variety of products, we produce Comb Busbar, Cable Lugs, Din railsInsulated Terminals,Brass Neutral Bars &Terminal Blocks, Non insulated terminalsPan assembly and other products.With 20 years of experience in program design andproduction experience, we provide and design professional, applicable managementsolutions for many equipment.
