Product Parameter
Brand: cnsdi
Product or component type:Comb busbar
Mounting mode:Horizontal
Part code: CDi-fork1.4x7-3P 4W 63A/36mm
Amperage Rating:63 A
Material: t3Copper and Pvc
Accessory / separate part category:Connection accessory
Lines description:3L
Length in 18 mm modules:12
Standards:IEC 60898-1,IEC 60947-7-1
Color: White

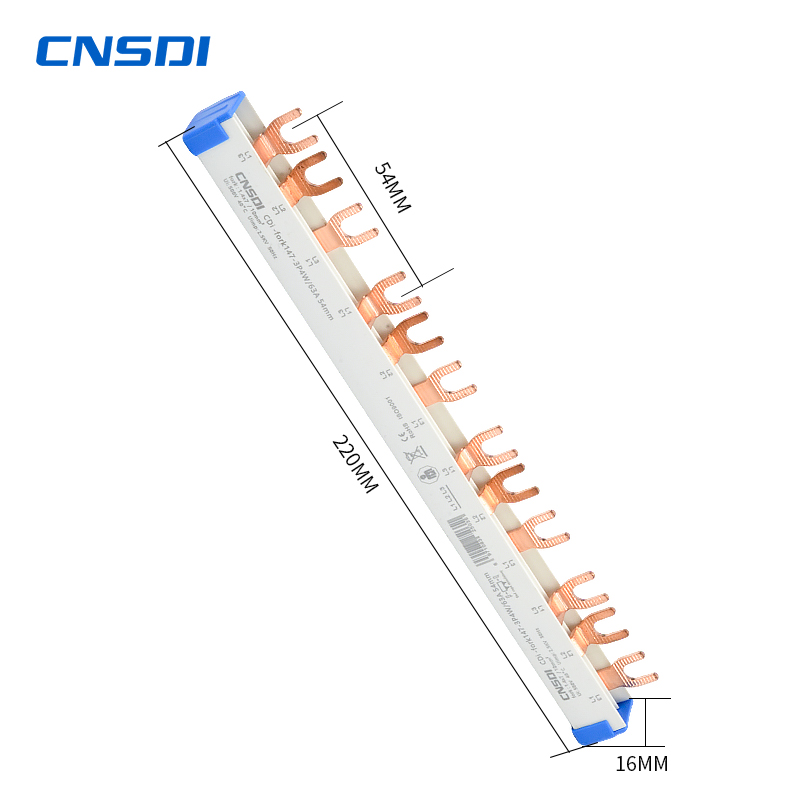

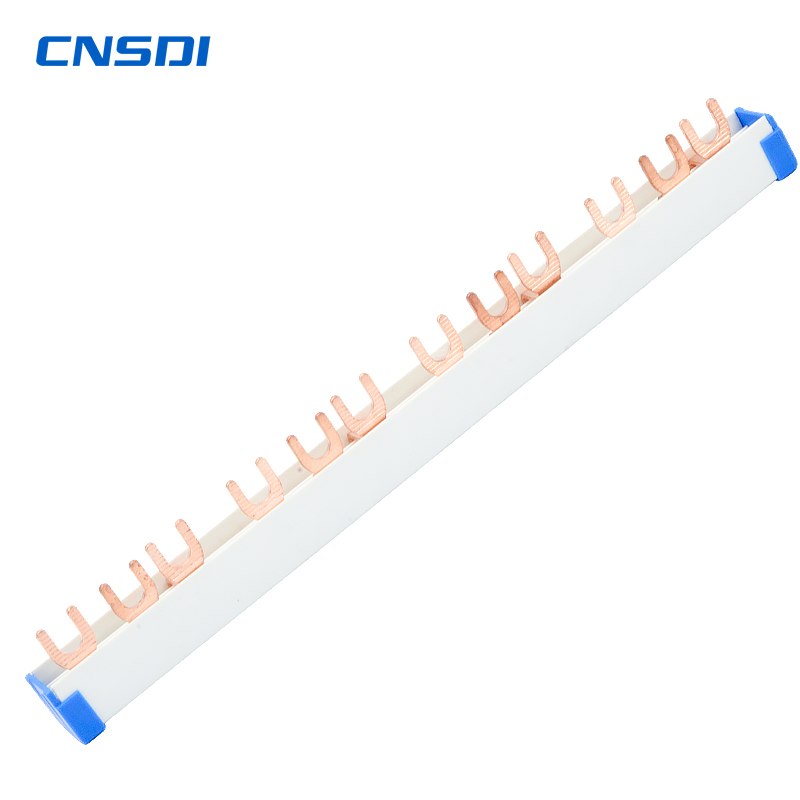

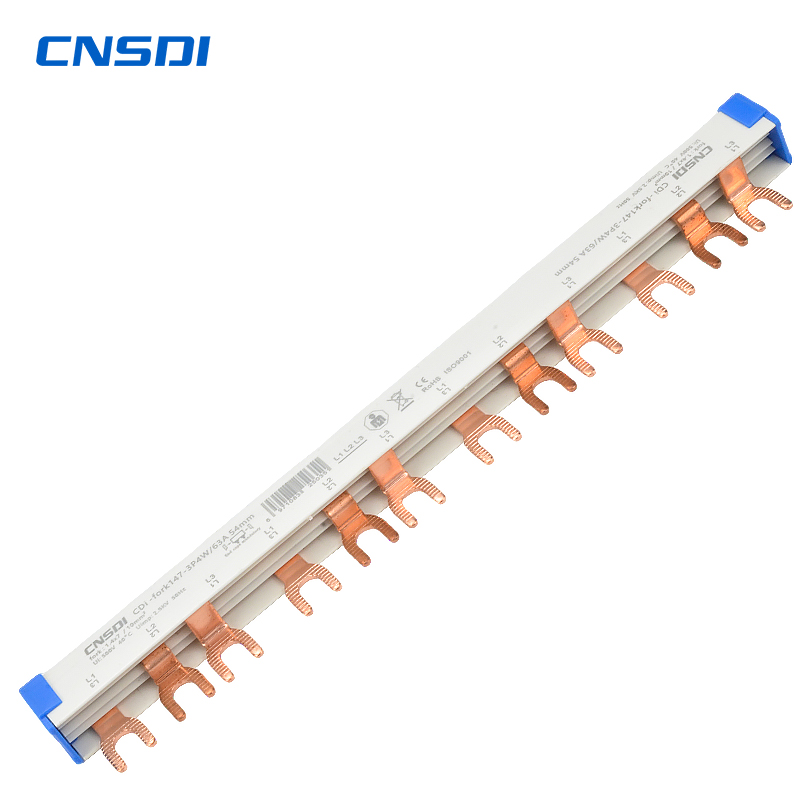

This CDi-fork147 product is a cuttable horizontal comb busbar 12 modules for UL 489 listed miniature circuit breakers up to a 63 A current rating. It is dedicated to 3L installations. The type is 3L (Line). It is a set of 1 device. It is suitable for 4 devices (3P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 10mm2. The type of electric connection is fork-U. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 500VAC.The color of the device is white. It complies with IEC 60947-7-1 and IEC 60898-1 standards.

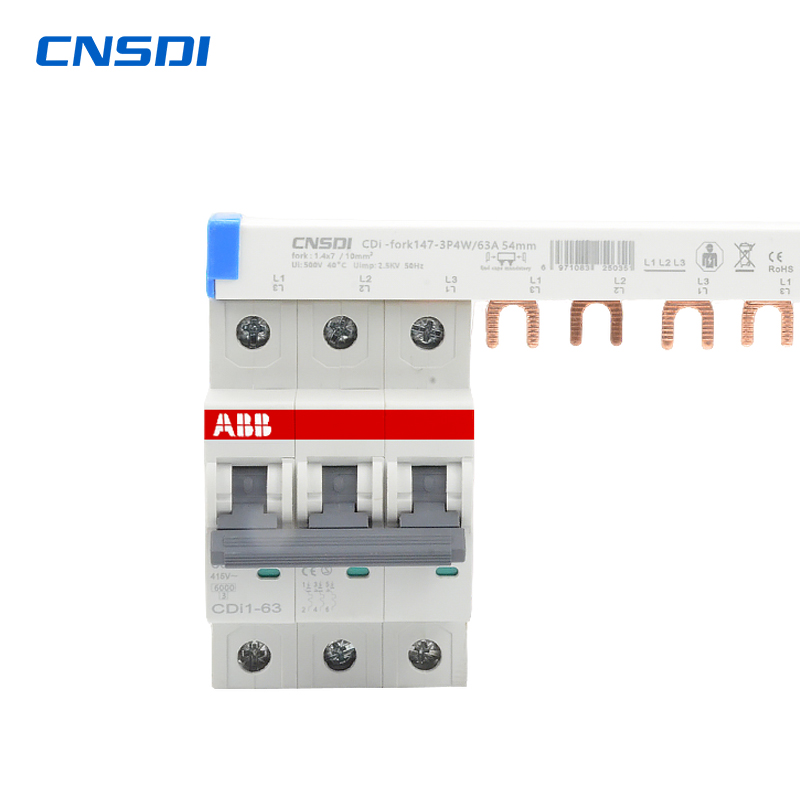

The present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with the characteristics of wider contact area,low power consumption and low temperature-rise.

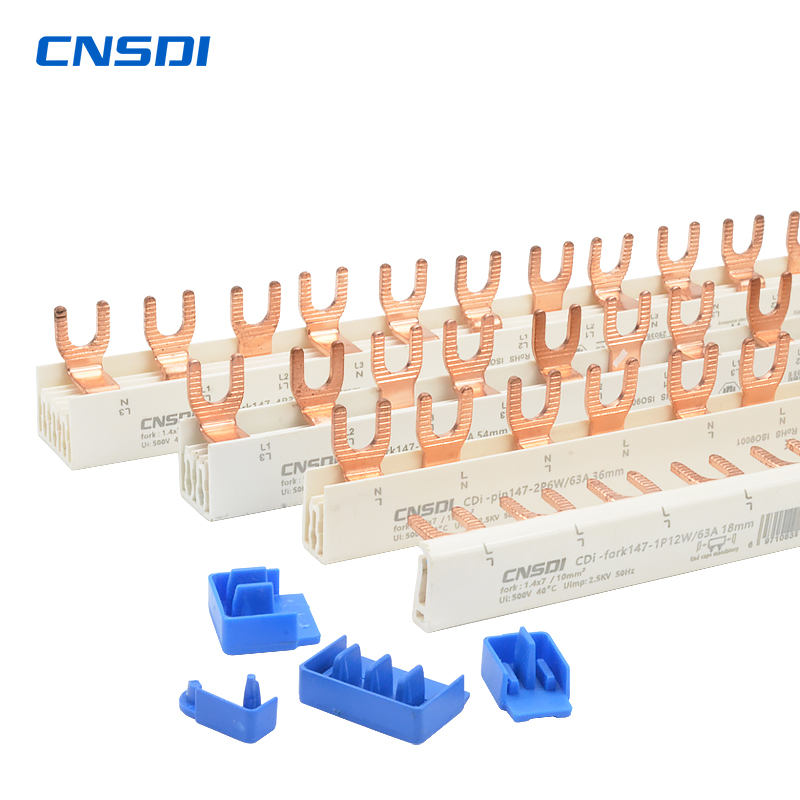

Our company produces almost all kinds of busbars for MCB,which have good versatility and practibility.It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box and so on.
