Product Parameter
Brand: cnsdi
Product or component type:Comb busbar
Mounting mode:Horizontal
Part code: CDi-pin1.4x7x4-4P 3W 63A/36mm
Amperage Rating:63 A
Material: t3Copper and Pvc
Accessory / separate part category:Connection accessory
Lines description:4L
Length in 18 mm modules:12
Standards:IEC 60898-1,IEC 60947-7-1
Color:  White

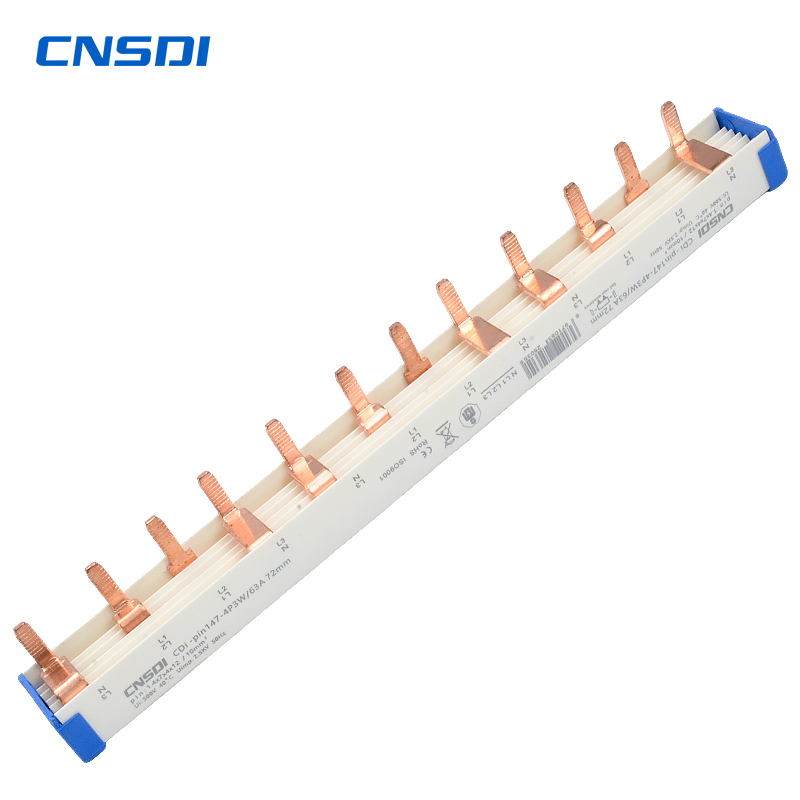

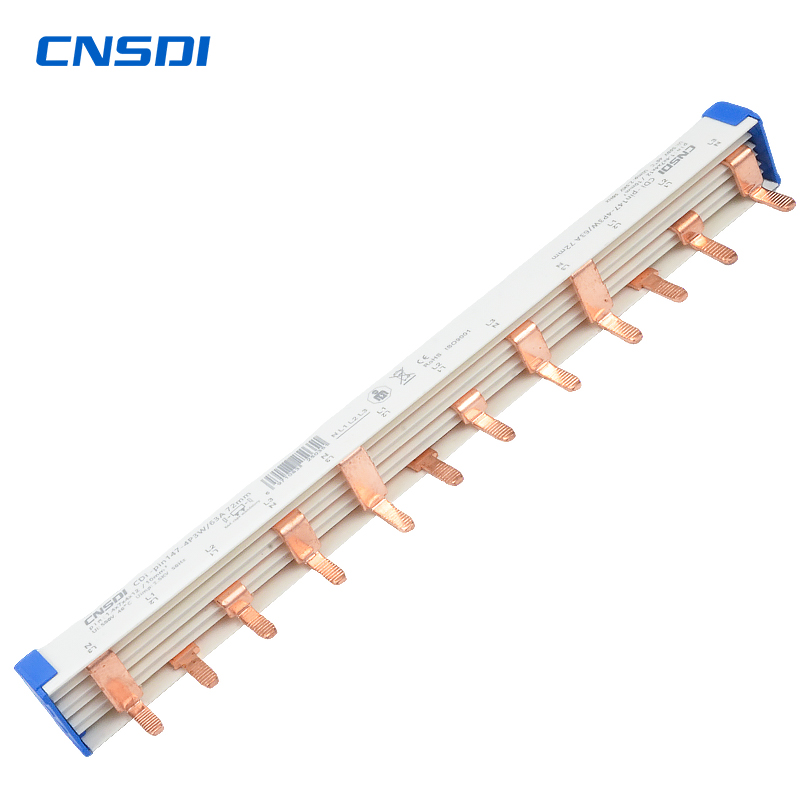

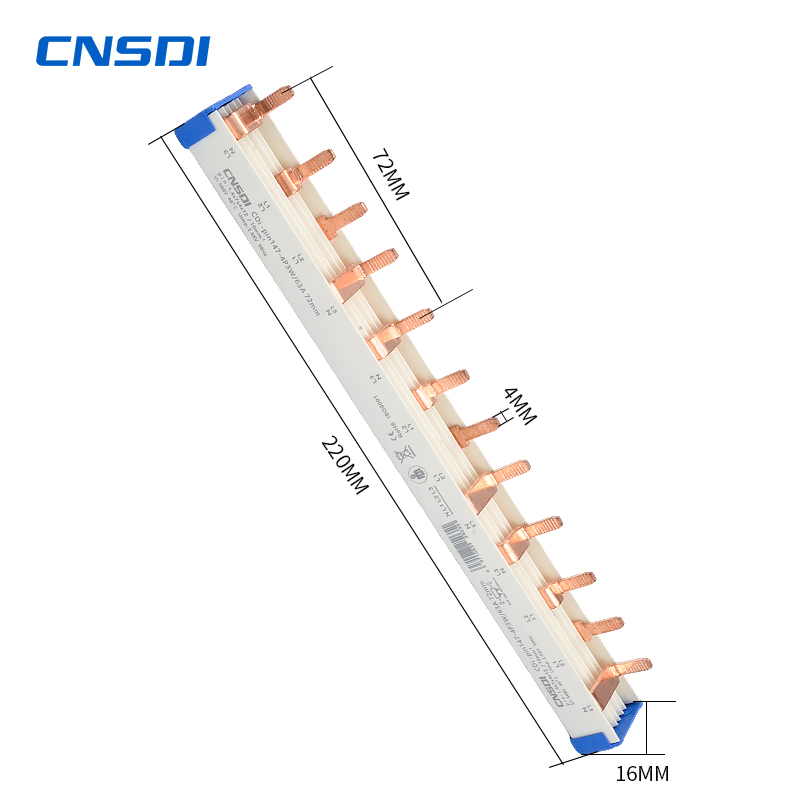

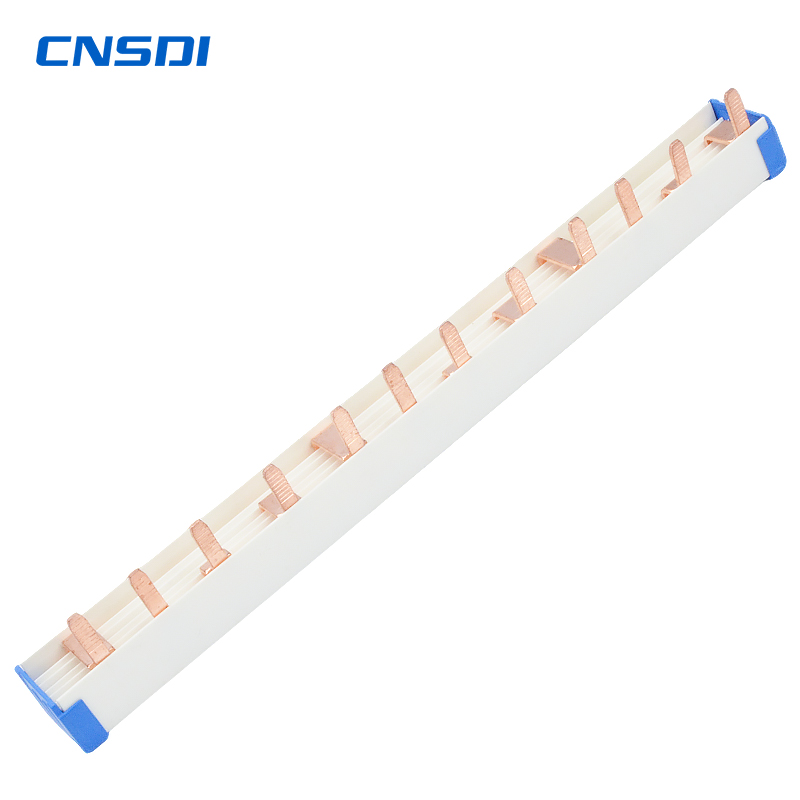

This CDi-pin147 product is a cuttable horizontal comb busbar 12 modules for UL 489 listed miniature circuit breakers up to a 63 A current rating. It is dedicated to 4L installations. The type is 4L (Line). It is a set of 1 device. It is suitable for 3 devices (4P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 10mm2. The type of electric connection is PIN. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 500VAC.The color of the device is white. It complies with IEC 60947-7-1 and IEC 60898-1 standards.
