Product Parameter
Brand: cnsdi
Product or component type:Comb busbar
Mounting mode:Horizontal
Part code: CDi-pin1.4x7x4-1P 12W 63A/18mm
Amperage Rating:63 A
Material: t3Copper and Pvc
Accessory / separate part category:Connection accessory
Lines description:1L
Length in 18 mm modules:12
Standards:IEC 60898-1,IEC 60947-7-1
Color: White

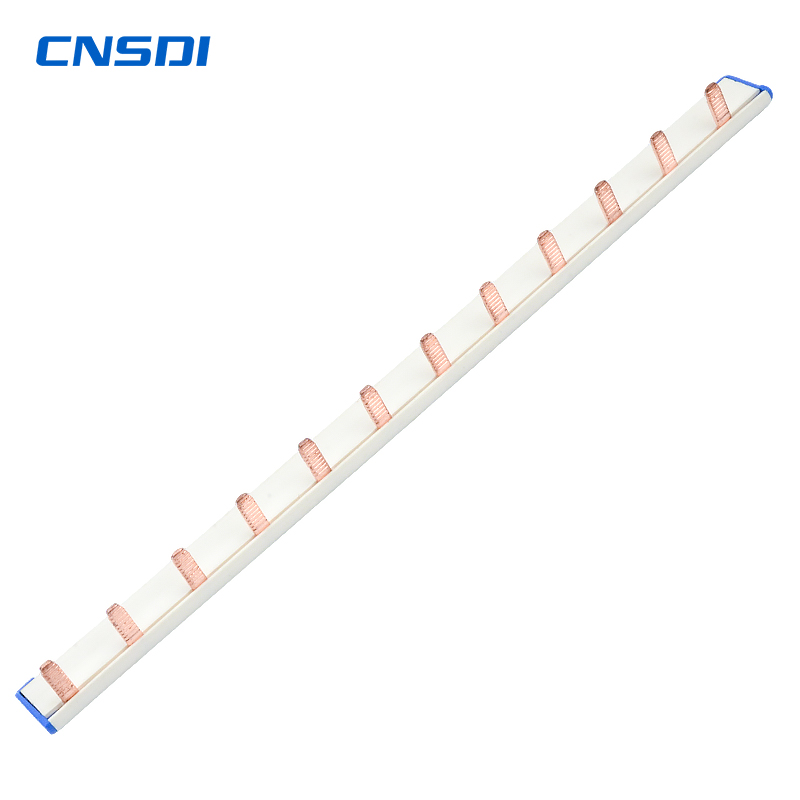

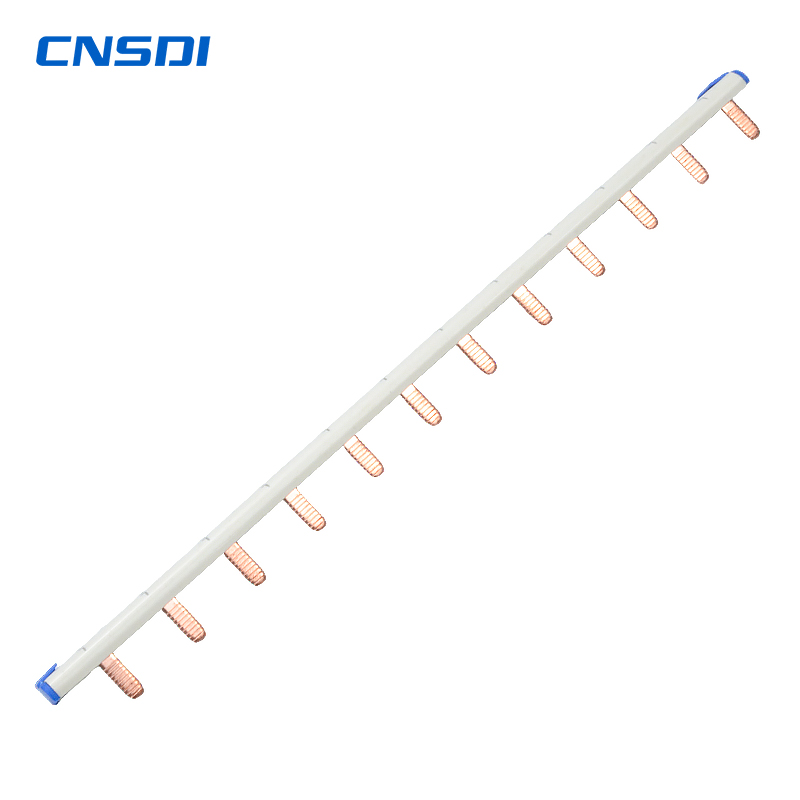

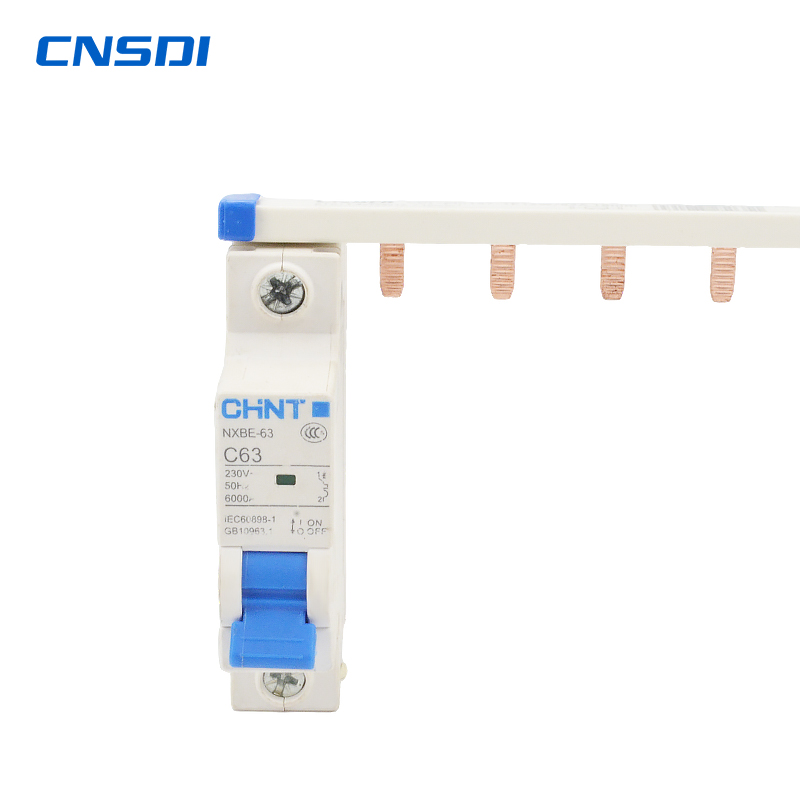

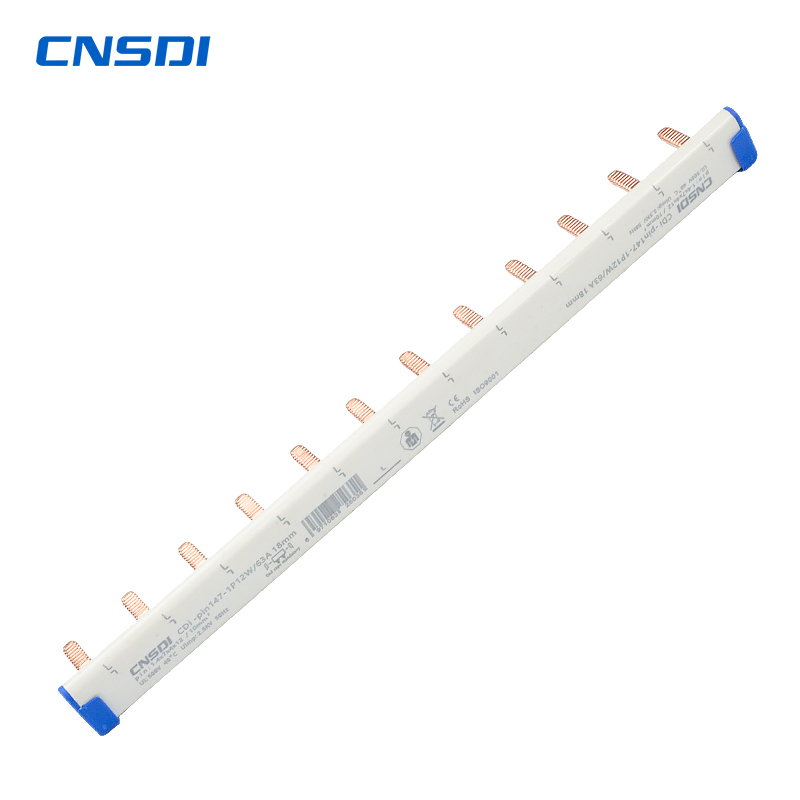

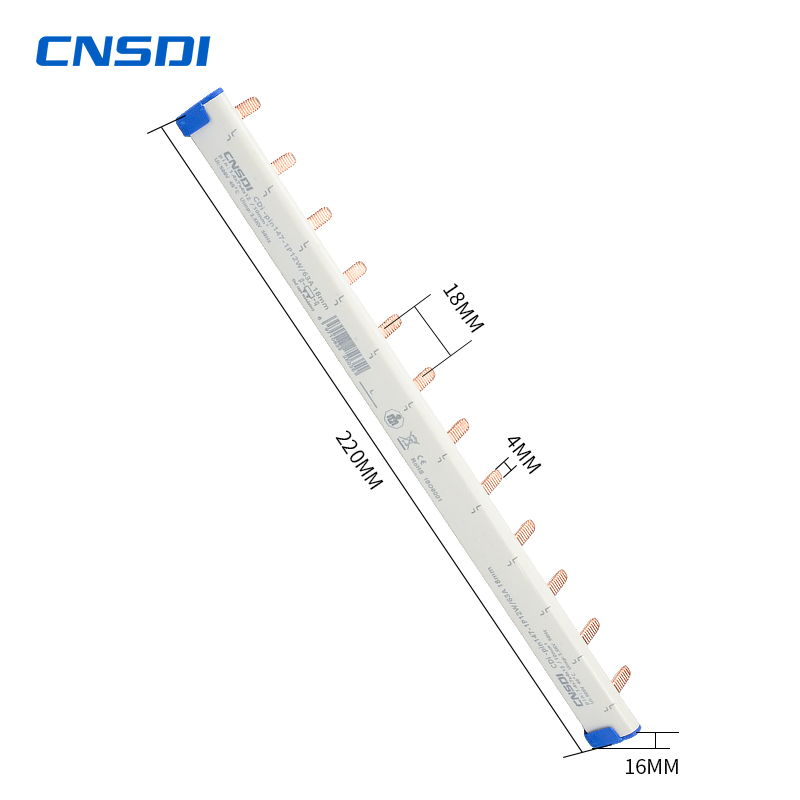

This CDi-pin147 product is a cuttable horizontal comb busbar 12 modules for UL 489 listed miniature circuit breakers up to a 63 A current rating. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 12 devices (1P). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 10mm2. The type of electric connection is PIN. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 500VAC.The color of the device is white. It complies with IEC 60947-7-1 and IEC 60898-1 standards.
zhejiang suodi (cnsdi) specializes in producing electrical accessories Chinese factory, a complete variety of products, we produce Comb Busbar, Cable Lugs, Din rails, Insulated Terminals,Brass Neutral Bars &Terminal Blocks, Non insulated terminals, Pan assembly and other products.With 20 years of experience in program design and production experience, we provide and design professional, applicable management solutions for many equipment.
