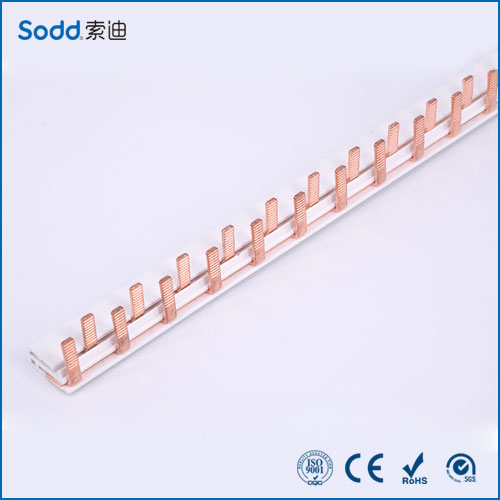

C45 Pin Copper Comb Busbar for MCB

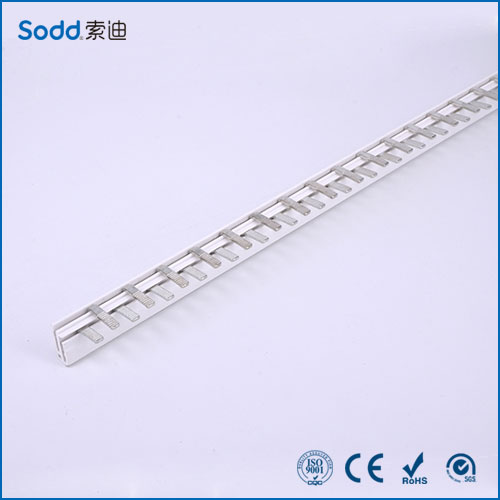

MCB connector bus bars DPN
MCB connector bus bars DPN MCB connector bus bars DPN MCB connector bus bars DPN MCB connector bus bars DPN MCB connector bus bars DPN

MCB connector bus bars DPN

Categories
C45 Pin Copper Comb Busbar for MCB
Brand
Sodd
Model
C45 Mcb Busbar DPN
FOB Port
ZhongShang,GuangZhou
Terms of Payment
Western Union,T/T Paypal
Update
05/19/2020
Product Description

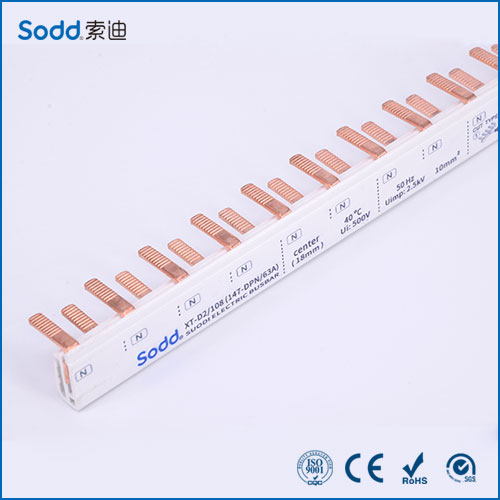

MCB Connector bus bars

The present Busbar changed the outdated connection ways of miniature circuit breaker (MCB) to a new connection way with the characteristics of wider contact area, low power consumption and low temperature-rise.

Product Description:

Our company produces almost all kinds of busbars for MCB,which have good versatility and practibility.It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box and so on.

Specifications:

1.CE & ROHS,SGS,ISO9001 Certificated
2.Model:C45 Pin Busbar (XT series)
3.Busbar:Pin/Fork/U type
4.Universal for MCB
5.Material: Pure copper, fire-resistance PVC
6.Rated Current:40A,50A,63A,80A,100A
7.Rated Voltage: up to 415V
8.Standard length 1M
9. Support OEM & ODM
10. Material of bus bar manufacturing company: copper and pvc
11.Type of comb busbar for distribution board panel: L-101, L-102, L-103, L-104,L-201,L202,L-203,L204
12.Phase/pole:1p,2p,3p,4p
13.No of Pins of bus bar manufacturing company: 54, 56
14.Rated Current (A): 63-100, 63,50,40
15. Thickness&Height (mm): 1.5&9, 1.5&7, 1.4&7, 1.2&7
16.Perfect printing on plastic slot, and convenient to cut

Features:

Good conductivity
Low contact resistance
Safe and reliable
Comb bus bar manufacturing company
Good versatility and tractability
Advantages and security and convenience to install and widely used in construction electrical devices.

Packaging & Delivery:

Packaging Details:5pcs each heat shrink film packing, 50pcs per carton, standard export packing
Delivery Detail:Shipped in 20 days after payment
As one of the trustworthy electrical bus bars manufacturers and suppliers in China, Sodd Electric is dedicated to be a professional cleaner energy and efficient energy developer and supplier. With professional factory supplying you with OEM, SCHNEIDER, ABB and LS electrical bus bars, you can rest assured to wholesale quality products and check the pricelist with us.

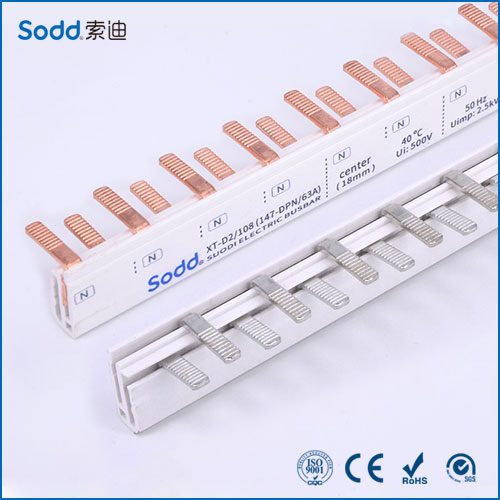

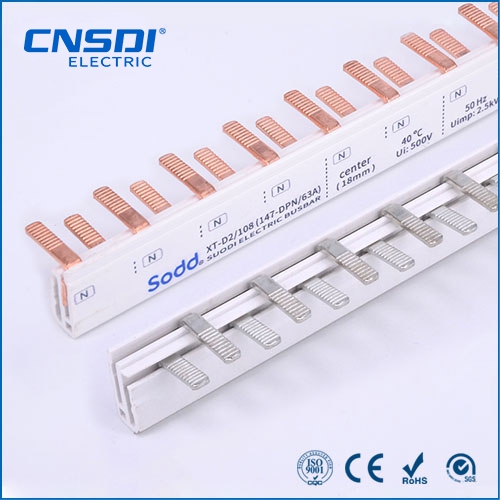

MCB Connector bus bars

Specifaication model A B C D E Cross-Sectional Area Referance Current
Xt 147 DPN 1.4 7 18 4 11.5 10mm2 63A
Xt 159 DPN 1.5 9 18 4 11.5 13.5mm2 100A

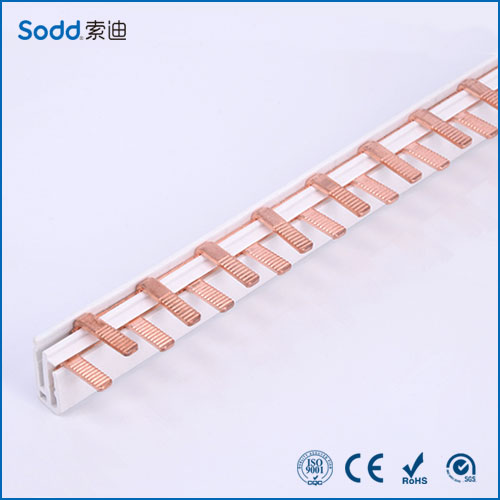

breaker busbar DPN

Mcb busbars plant equipment

Mcb breaker busbar production assembly
