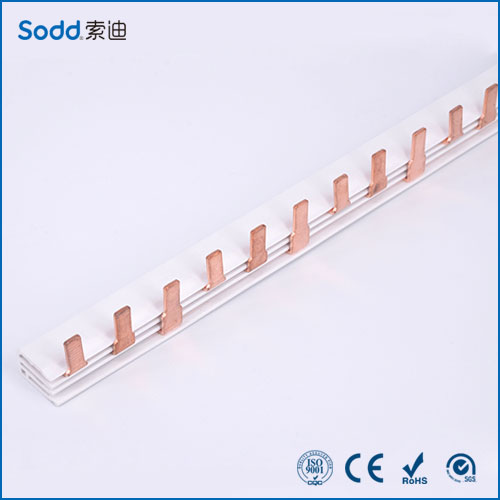

The present Busbar changed the outdated connection ways of miniature circuit breaker (MCB) to a new connection way with the characteristics of wider contact area, low power consumption and low temperature-rise.
Our company produces almost all kinds of busbars for MCB,which have good versatility and practibility.It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box and so on.
1.CE & ROHS,SGS,ISO9001 Certificated

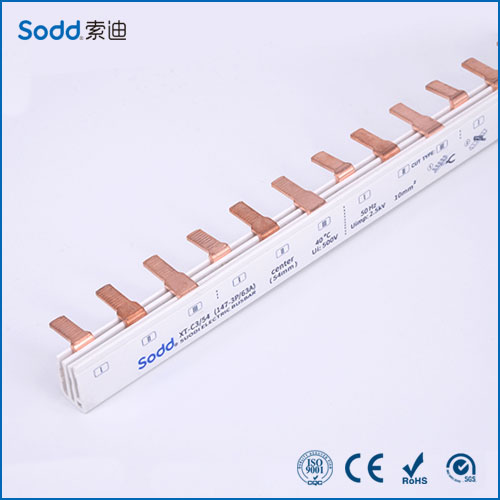

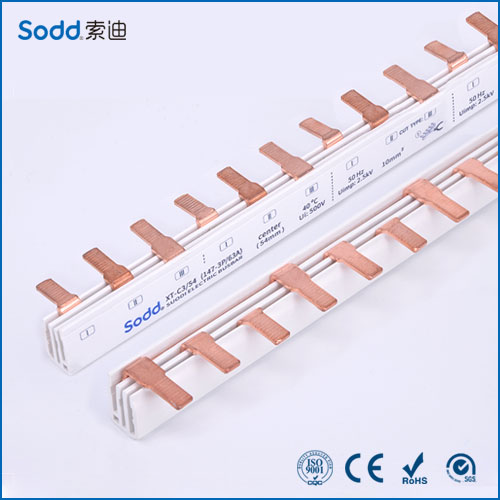

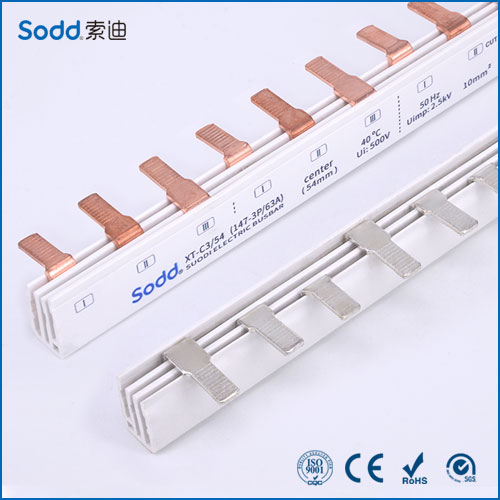

2.Model:C45 Pin Busbar (XT series)
4.Universal for MCB
5.Material: Pure copper, fire-resistance PVC
7.Rated Voltage: up to 415V
8.Standard length 1M
9. Support OEM & ODM
10. Material of bus bar manufacturing company: copper and pvc
11.Type of comb busbar for distribution board panel: L-101, L-102, L-103, L-104,L-201,L202,L-203,L204
13.No of Pins of bus bar manufacturing company: 54, 56
14.Rated Current (A): 63-100, 63,50,40
15. Thickness&Height (mm): 1.5&9, 1.5&7, 1.4&7, 1.2&7
16.Perfect printing on plastic slot, and convenient to cut
Low contact resistance
Safe and reliable

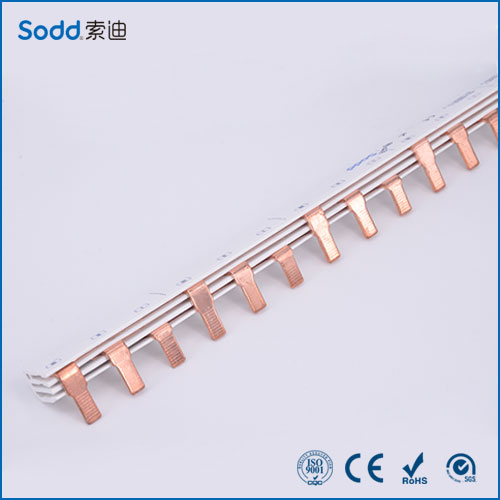

Comb bus bar manufacturing company
Good versatility and tractability
Advantages and security and convenience to install and widely used in construction electrical devices.
Packaging & Delivery:
Packaging Details:5pcs each heat shrink film packing, 50pcs per carton, standard export packing
Delivery Detail:Shipped in 20 days after payment
As one of the trustworthy electrical bus bars manufacturers and suppliers in China, Sodd Electric is dedicated to be a professional cleaner energy and efficient energy developer and supplier. With professional factory supplying you with OEM, SCHNEIDER, ABB and LS electrical bus bars, you can rest assured to wholesale quality products and check the pricelist with us.
|Specifaication||model||A||B||C||D||E||Cross-Sectional Area||Referance Current|
MCB busbar copper clad aluminum busbar
Material is of fire-resistant PVC and redl copper
2. Current rating is up to 125A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.
The Present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with the characteristics of wider contact area ,
low power consumption and temperature-rise.
Our company products almost all kinds of busbars for MCB,
which have good versatility and practility.
It has advantages of security and convenience to install and widely used in construction
electrical devices,such as low-voltage power box ,distribution box,illuminatde box and so on.
The patented combinated busbar get rid of the disadvantage of the old style busbar and has
the following virtue.
1.It can be combinated to install directly by ednd user according to any type and quantity of
MCBs,thus can avoid the "cut-the busbar" inconvenience when the old style busbar used.
2.It can form the mixed busbar to match different type of MCBs with its different unit directly
by end user,whereas it can only specially-made
by the manufactory with different mould
thus can solve the connection difficulties when the old busbar used.
3.It has the feature of good clima stability and can be used in the humid or frozen circumstance,
due to its sealed structure,while the old stype busbar can not be used because of its unstable
creepy distance and with stand voltage in such circumstance.
4.The temperature-resistant of its insulator can reach 120°C ,and the withstand voltage of it can reach 5000V,which is much better than the old one.
