Insulated Terminals

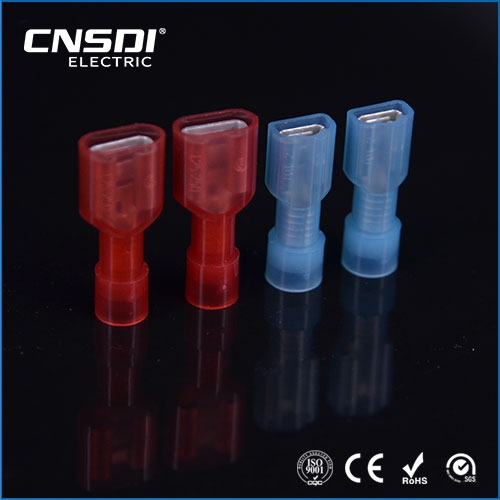

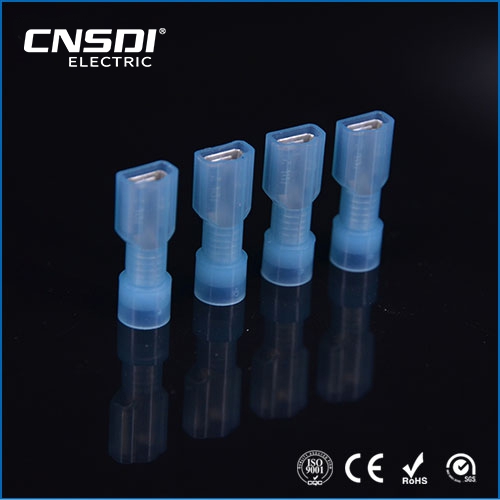

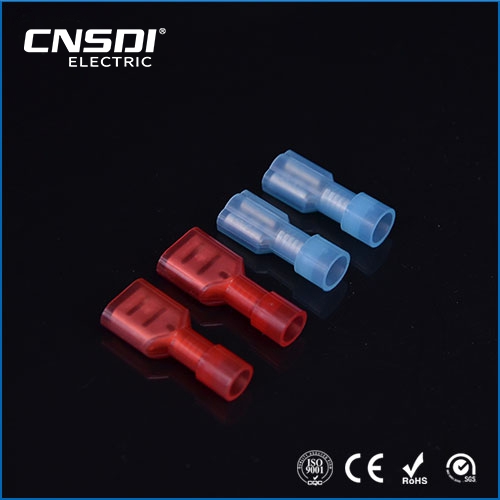

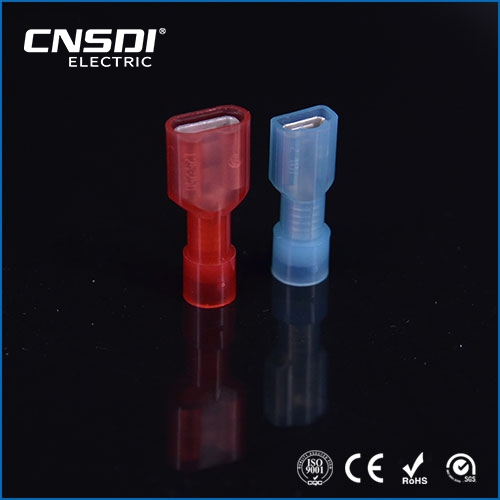

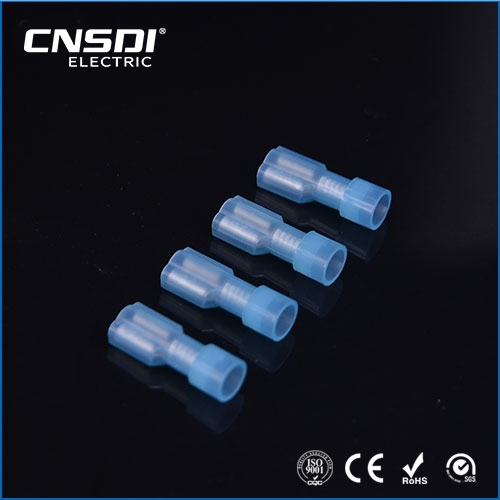

Fully insulated Male and female connectors FDFN /MDFN
Fully insulated Male and female connectors FDFN /MDFN Fully insulated Male and female connectors FDFN /MDFN Fully insulated Male and female connectors FDFN /MDFN Fully insulated Male and female connectors FDFN /MDFN Fully insulated Male and female connectors FDFN /MDFN

Fully insulated Male and female connectors FDFN /MDFN

Categories
Insulated Terminals
Brand
Sodd
Model
FDFN,MDFN
FOB Port
ZhongShang,GuangZhou
Terms of Payment
Western Union,T/T Paypal
Update
08/01/2019
Product Description

PVC Material: Copper, PVC
Operating voltage: 600V
Temperature withstand: 75℃
Surface treatment of brass parts: tin coating
The terminal body: Copper or Brass material,with Tin plating.
The sleeve:Red/Blue/Black/Yellow etc color.
Certificates: ISO9001,CE,ROHS.
Package:100pcs or 1000pcs in bag, box/bag/plastic box outside package.
Features:Fireproof,Insulate,Easy to use
Offer OEM&ODM service.
According different sleeve materials,will be four kinds: PVC insulated terminals,Nylon insulated terminals,Heat shrinkable terminals and Double sleeve Insulated terminals (Easy Entry).
Our insulated terminals &connectors with Ring/Eyelet type,fork/spade type,blade type,pin type, butt connectors, cord end types,male and female bullet connectors,quick connectors etc all kinds for different usage.
Different wire range (A.W.G.) 0.5-1.5, 1.5-2.5, 2.5-4.0, 4.0-6.0mm2(22-16, 16-14, 14-12, 12-10AWG) or screw size (Inch #6, #8, #10, 1/4, 5/16, 3/8, 1/2).
Usage:put the multi core wire into tube,then use the crimping tools to crimp, insert this cable shoes to brass terminal or electrical applicant.
Application:help multi core wire connection to brass terminal or electrical applicant,applied for kinds of industrial and mining enterprises such as steel smelting, petrochemical industry, electric power, electron, railway, construction, airport, mine, water supply and drain processing factory, port, store, hotel and so on.



spec(mm²) 1.25 2 5.5
Max current(A) 10 15 24
 Cable Size  ITEM NO. Size (mm)  Copper Thickness  Color  pcs/pack
W F L B D C
A.W.G. 22-16 0.5-1.5mm2 DMDFN1.25-250 6.35 7.5 24 11 4 2 0.4  red 500
A.W.G. 16-14 1.5~2.5mm2 DMDFN2-250 6.35 7.5 24 11.5 4.5 2.5 0.4  blue 500
A.W.G. 12-10 4~6mm2 DMDFN5.5-250 6.35 8.5 25 11.5 6 3.5 0.4  yellow 500



spec(mm²) 1.25 2 5.5
Max current(A) 10 15 24
 Cable Size  ITEM NO. Size (mm)  Copper Thickness Color  pcs/pack
W F L B D C
A.W.G. 22-16 0.5-1.5mm2 DFDFN1.25-250 6.5 7.5 22.5 11.5 4 2 0.4  red 1000
A.W.G. 16-14 1.5~2.5mm2 DFDFN2-250 6.5 7.5 22.5 11.5 4.5 2.5 0.4  blue 1000
A.W.G. 12-10 4~6mm2 DFDFN5.5-250 6.5 7.5 24 13 6.5 3.5 0.4  yellow 500
